Product Details:
|
| Panel Size: | 10.4 Inch | Display Colors: | 262K (6-bit) |
|---|---|---|---|
| Brightness: | 220 Cd/m² (Typ.) | Weight: | 295g (Typ.) |
| Aspect Ratio: | 4:3 (H:V) | Resolution: | 800(RGB)×600 , SVGA |
| High Light: | lg display panel,lg lcd display |
||

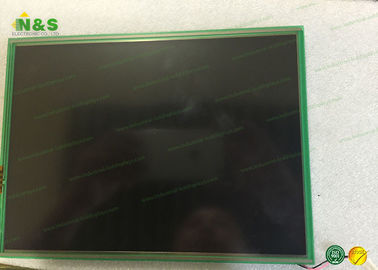

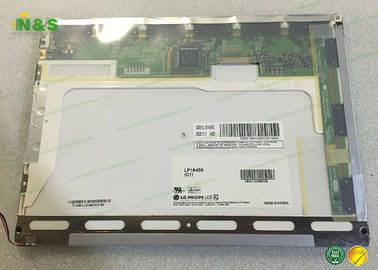

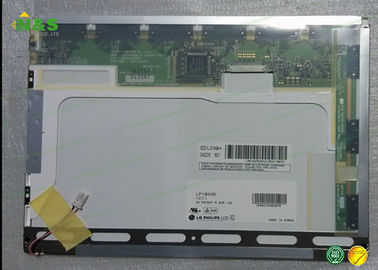

800*600 Original LG. LCD LP104S5-C1 for 10.4 inch without touch
> Excellent service:
We mainly sell Industrial LCD panels and touch screens , providing information and technical consultation for all kinds of LCD screens and touch screens, Wehave many parts in stock ,such as the brand for GT/GUNZE,FUJITSU,HITECH,SIEMENS,HAKKO,WEINVIW,ELO parts. And 4.7-15 inches is between the various size of industrial screen, They are applicable to vehicles, medical equipments, injection molding machines ,industrial equipments etc.
we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices .
Mechanical Features:
Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 295g (Typ.)
Surface : Antiglare (Haze 13%), Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 214.2×161.8 mm (H×V)
Outline Dimension : 224.5×172 mm (H×V)
Outline Depth : 5.7 (Typ.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without
LG. LCD LP104S5-C1 General Features:
Panel Brand : LG. LCD
Panel Model : LP104S5-C1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 224.5×172 mm
Surface : Antiglare (Haze 13%), Hard coating (3H)
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/30 (Typ.)(Tr/Td)
Viewing Angle : 55/55/40/40 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 20 pins
Input Voltage : 3.3V (Typ.)
LG. LCD LP104S5-C1 Optical Features:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/40/40 (Min.)(CR≥10) (L/R/U/D) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LG. LCD LP104S5-C1 Backlight System:
| Lamp Position : | Edge light type |
| Lamp Type : | CCFL |
| Lamp Amount : | 1 pcs |
| Lamp Shape : | Straight |
| Lamp Life Time : | 20K(Min.) (Hours) |
| Lamp Voltage : | 500V (Typ.) |
