Product Details:
|
| Panel Size: | 10.1 Inch | Panel Brand: | LG Display |
|---|---|---|---|
| Touch Panel: | Without | Brightness: | 200 Cd/m² (Typ.) |
| Dot Resolution: | 1024(RGB)×600 , WSVGA | Aspect Ratio: | 16:9 (H:V) |
| Operating Temperature: | 0 ~ 50 °C | Storage Temperature: | -20 ~ 60 °C |
| High Light: | lg display panel,lg replacement screen |
||

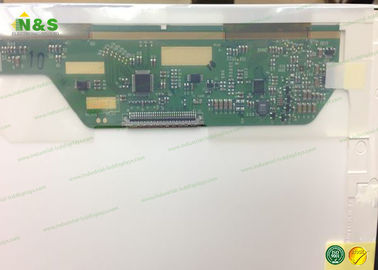

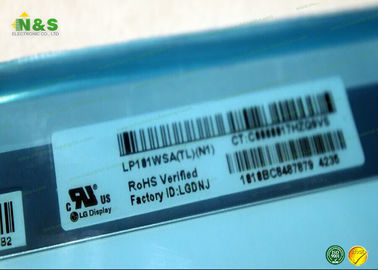

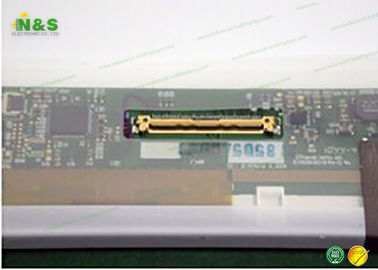

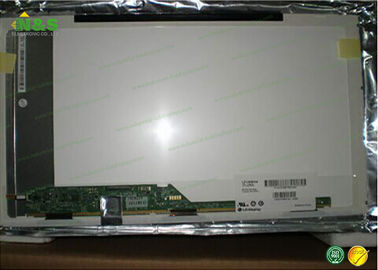

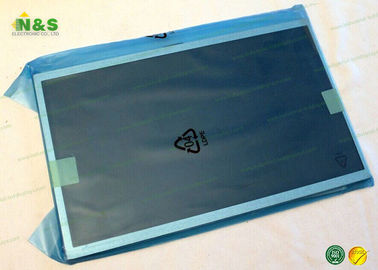

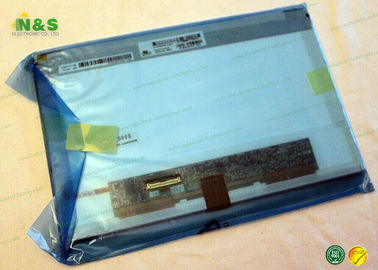

10.1 inch lcd display without touch screen LP101WSA-TLN1 with 1024*600 high brightness
Trade Terms:
Payment terms: 100% by T/T when order confirmed
Lead time: 2-5 working days according to the order quantity
Sample lead time: within 3 working days after we get payment.
The price based on FOB Shenzhen,we will offer best discount according to order quantity.
Warranty:offer free spare parts within ONE year.
Offer OEM service for batch orders,to print logo and design box
LG Display LP101WSA-TLN1 Mechanical Features:
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
| Weight : | 190g (Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 222.72×125.28 mm (H×V) |
| Bezel Area : | 226.0×128.7 mm (H×V) |
| Outline Dimension : | 235×143 mm (H×V) |
| Outline Depth : | 5.2 (Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Main Parameters:
Panel Brand : LG Display
Panel Model : LP101WSA-TLN1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.1 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 222.72×125.28 mm
Outline : 235×143×5.2 mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Surface : Glare (Haze 0%)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 300:1 (Min.)
Display Colors : 262K (6-bit)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 30/30/10/20 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10 years.
2. We got the ISO9001 quality management system certification.
3. We have our own R&D team, and accept OEM order as per customer’s design.
4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6. All products win the certificate of CE,CCC,FCC and RoHS.
7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8. 1 year warranty is offered.
Our company:
We have a good reputation in the trading of lcd panel and have built up a wide and stable relationship with agency and distributors of lcd panel.
Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in China market.
We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the panels.
We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
| LH300Q02-SD01 | LG Display | 3.0" | 240×320 |
