Product Details:
|
| Aspect Ratio: | 16:9 (H:V) | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Display Colors: | 16.7M (8-bit) | Panel Brand: | LG Display |
| Weight: | 230g (Max.) | Pixel Configuration: | RGB Vertical Stripe |
| Touch Panel: | Embeded (Projected Capacitive Touch) | Form Factor: | Flat Rectangle Display |
| Brightness: | 400 Cd/m² (Typ.) | Dot Resolution: | 1366(RGB)×768 (WXGA) |
| High Light: | lg display panel,lg replacement screen |
||

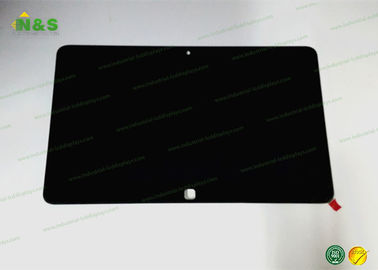

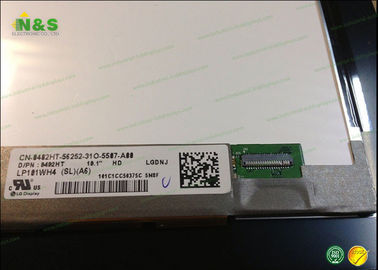

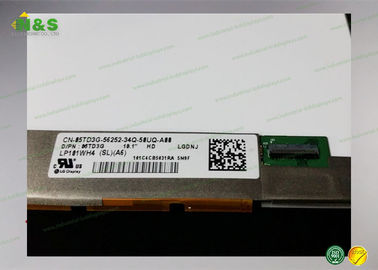

10.1 inch Original Touch Panel LP101WH4-SLA6 with high brightness 1366*768 LG LCD Panel
Our Advantages for LP101WH4-SLA6:
LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 countries, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.
N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LG Display LP101WH4-SLA6 General Features:
Panel Brand : LG Display
Panel Model : LP101WH4-SLA6
Panel Type : a-Si TFT-LCD , Assembly
Panel Size : 10.1 inch
Resolution : 1366(RGB)×768 , WXGA
Active Area : 222.52×125.11 mm
Outline : 269.37×171.97×5.8 mm
Surface :
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 16.7M (8-bit)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : LVDS (1 ch, 8-bit) , 39 pins
Input Voltage : 3.3V (Typ.)
LG Display LP101WH4-SLA6 Mechanical Features:
Panel Size : 10.1 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 155 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0543×0.1629 mm (H×V)
Pixel Pitch : 0.1629×0.1629 mm (H×V)
Weight : 230g (Max.)
Active Area : 222.52×125.11 mm (H×V)
Outline Dimension : 269.37×171.97 mm (H×V)
Outline Depth : 3.85/5.8 (Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (Projected Capacitive Touch)
Panel Cover : With Cover Lens
LG Display LP101WH4-SLA6 Optical Features:
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.20/1.40 (Typ.)(5/13 points) |
after sales servixce:
A. Only accept the item we sell
B. Need the list of returns with the product No and Qty
C. The returns need our Bar No., Label, and our test report, Or we could not recognize our products sold.
About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
