Product Details:
|
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) |
|---|---|---|---|
| Input Voltage: | 3.3V (Typ.) | Viewing Angle: | 80/80/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Panel Type: | A-Si TFT-LCD , Panel | Surface: | Antiglare, Hard Coating (3H) |
| Highlight: | auo lcd screen,auo lcd display |
||
1024×768 Original TFT LCD Panel G150XG03 V4 AUO for Industrial Application
Product Features
| Model | G150XG03-V4 |
| Size | 15.0" |
| Productor | AUO |
| Resolution | 1024×768 |
| Display scale | 4:3 (H:V) |
| Response | 5.7/2.3 (Tr/Td) ms |
| Luminance | 250 nits |
| Contrast Ratio | 700:1 (Typ.) |
| Color | 262K/16.2M |
| Technology | a-Si TFT-LCD |
| Interface | LVDS |
| Drive-screen voltage | 3.3V |
| Backlight | WLED |
| Active Area | 304.128×228.096 mm |
| Outline | 326.50× 253.50×12.00 mm |
| Weight | 1.00Kgs (Max.) |
| Viewing Angle | 70/60/80/80(U/D/L/R) |
Main Products: 1. AUO LCD Panel
2. Innolux LCD Panel
3. Tianma LCD Displays
4. Samsung LCD Panel
5. Chimei LCD Screen
6. Innolux LCD Display
7. Hitachi LCD Panel
8. NEC LCD Screen Replacement
9. Sharp LCD Screen
10. TFT LCD Module
11. Industrial LCD Displays
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products.
2. Application of our lcd panles:
*Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be guaranteed:
* All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.
4. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
5.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
6. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.
AUO G150XG03 V4 Backlight System
| Lamp Position | Edge light type (Bottom side) | |||||
| Lamp Type | WLED | |||||
| Lamp Life Time | 50K(Min.) (Hours) | |||||
| Lamp Replaceable | Replaceable | |||||
| Interface Type | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | |
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | ||
| Lamp Driver Board | Embedded (LED Driver) | |||||
| Lamp Driver Board | 10.8/12.0/12.6V (Min./Typ./Max.) | |||||
| Lamp Driver Board | 0.38A (Typ.) | |||||
| Lamp Driver Board | 4.1/4.56/4.78W (Min./Typ./Max.) | |||||

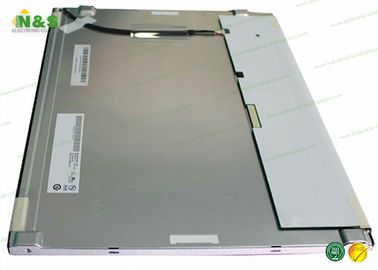

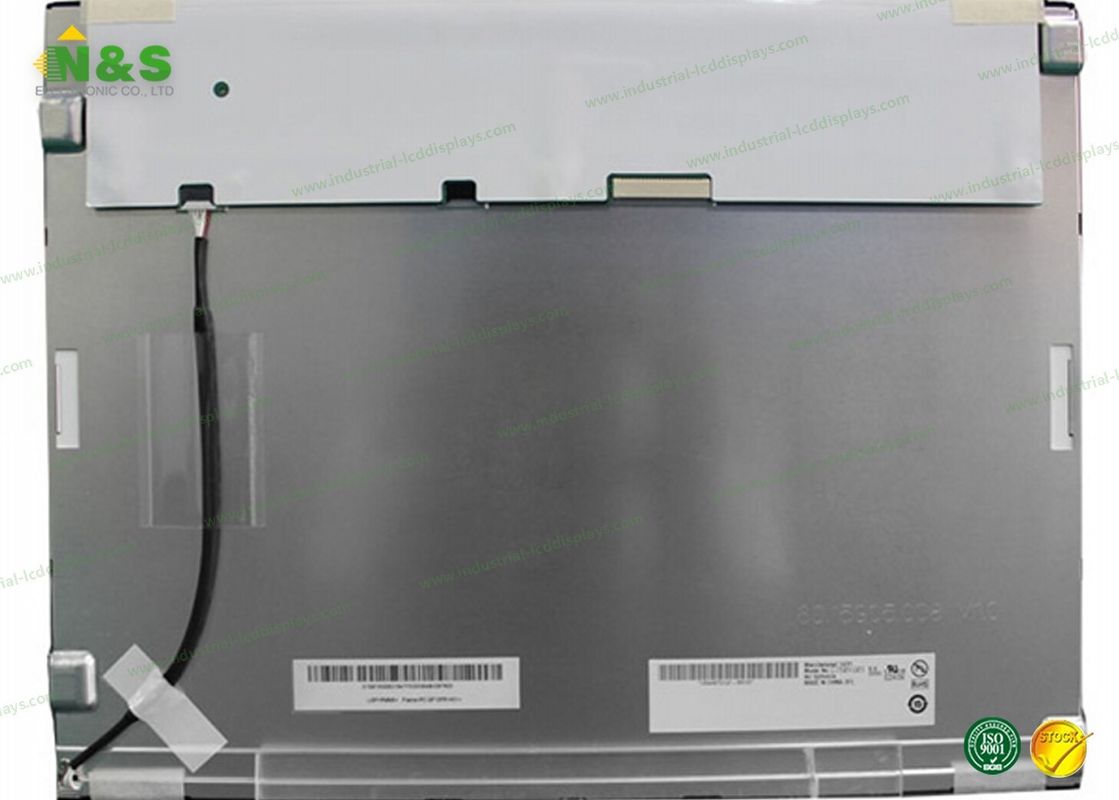

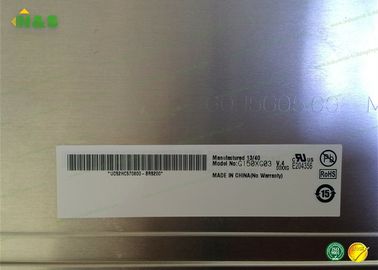

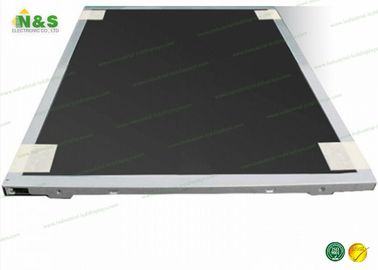

Product Photograph for AUO G150XG03 V4
