Product Details:
|
| Active Area: | 303.48×189.675 Mm | Surface: | Glare (Haze 0%) |
|---|---|---|---|
| Pixel Configuration: | RGB Vertical Stripe | Pixel Density: | 120 PPI |
| Outline Depth: | 5.2/5.5 (Typ./Max.) Mm | Weight: | Weight406/420g (Typ./Max.) |
| Panel Size: | 14.1 Inch | Display Color: | 262K (6-bit) |
| High Light: | tft lcd display,innolux lcd screen |
||
CMO G141C1-L01 14.1 inch Innolux LCD Panel for 1440*900 Wide Screen
Quick Details
|
Panel Brand : |
CMO |
|
Panel Model : |
G141C1-L01 |
|
Panel Type : |
a-Si TFT-LCD , Panel |
|
Panel Size : |
14.1 inch |
|
Resolution : |
1440(RGB)×900 , WXGA+ |
|
Outline : |
319.5×205.5×5.5 mm |
|
Surface : |
Glare (Haze 0%) |
|
Brightness : |
250 cd/m² (Typ.) |
|
Contrast Ratio : |
1000:1 (Typ.) |
|
Display Colors : |
262K (6-bit) |
|
Lamp Type : |
WLED Embedded (LED Driver) |
|
Signal Interface : |
LVDS (2 ch, 6-bit) , 40 pins |
|
Input Voltage : |
3.3V (Typ.) |
|
Weight : |
406/420g (Typ./Max.) |
|
Bezel Area : |
306.76×193.0 mm (H×V) |
|
Outline Dimension : |
319.5×205.5 mm (H×V) |
|
Outline Depth : |
5.2/5.5 (Typ./Max.) mm |
Our Companys Main Products: 1. AUO LCD Panel
2. Innolux LCD Panel
3. Tianma LCD Displays
4. Samsung LCD Panel
5. Chimei LCD Screen
6. Innolux LCD Display
7. Hitachi LCD Panel
8. NEC LCD Screen Replacement
9. Sharp LCD Screen
10. TFT LCD Module
11. Industrial LCD Displays
Special Features:
Display mode: MVA, Normally Black, Transmissive
Viewing direction: Symmetry
Back light: Edge light type WLED, 8 serial and 6 parallel , Lamp Voltage=7.0/12.0/21.0V (Min./Typ./Max.)
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.

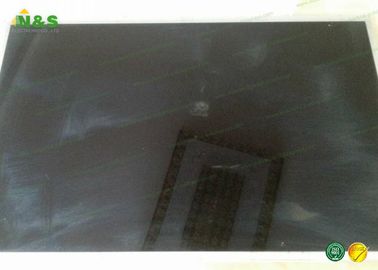

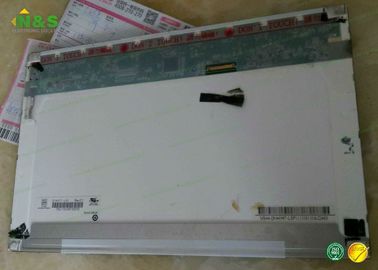

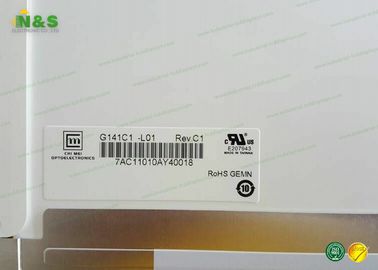

Products CMO G141C1-L01 Details Picture
