Product Details:
|
| Response Time: | 20/30 (Max.)(Tr/Td) | Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
|---|---|---|---|
| Lamp Type: | 4S4P WLED | Resolution: | 800(RGB)×480 , WVGA |
| Panel Size: | 7.0 Inch | Panel Type: | A-Si TFT-LCD , Panel |
| Brightness: | 350 Cd/m² (Min.) | Outline: | 170.8×107.95×21.5 Mm |
| High Light: | auo display panel,auo lcd display |
||
high Brightness C070VW02 V1 7.0 inch AUO LCD Display Panel
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
The reasons you choose us
1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.
| Panel Brand : | AUO |
| Panel Model : | C070VW02 V1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 170.8×107.95×21.5 mm |
| Surface : | Antiglare (Haze 40%), Hard coating (3H) |
| Brightness : | 350 cd/m² (Min.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/30 (Max.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 4S4P WLED |
| Signal Interface : | TTL (1 ch, 6-bit) , 98 pins |
| Input Voltage : | 3.3/9.8/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Min.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20/30 (Max.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.330 |

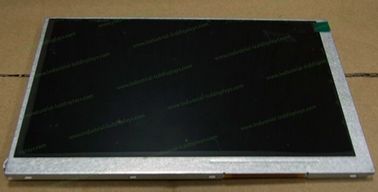

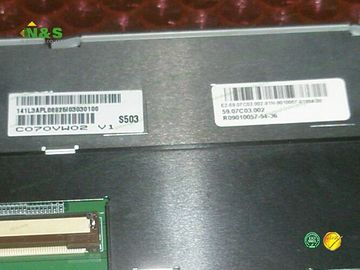

Details Pictures for C070VW02 V1
