Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Panel Brand: | CMO |
|---|---|---|---|
| Brightness: | 500 Cd/m² (Typ.) | Lamp Type: | WLED Embedded (LED Driver) |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins | Pixel Density: | 105 PPI |
| High Light: | tft lcd display,innolux lcd screen |
||
12.1 inch G121X1-L04 Innolux LCD screen , new original TFT LCD Panel
Our Companys Main Products:
1. AUO LCD Panel
2. Innolux LCD Panel
3. Tianma LCD Displays
4. Samsung LCD Panel
5. Chimei LCD Screen
6. Innolux LCD Display
7. Hitachi LCD Panel
8. NEC LCD Screen Replacement
9. Sharp LCD Screen
10. TFT LCD Module
11. Industrial LCD Displays
CMO G121X1-L04 Optical Features
|
Display Mode : |
TN, Normally White, Transmissive |
|
Brightness : |
500 cd/m² (Typ.) |
|
Contrast Ratio : |
700 : 1 (Typ.) (Transmissive) |
|
Display Color : |
262K/16.2M (6-bit / 6-bit + FRC) |
|
Color Gamut : |
63% NTSC (CIE1931) |
|
Response Time : |
5/11 (Typ.)(Tr/Td) |
|
Viewing Angle : |
80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
|
White color Chromaticity : |
Wx:0.313; Wy:0.329 |
|
White Variation : |
1.25/1.40 (Typ./Max.)(5 points) |
Backlight System
|
Lamp Position |
Edge light type |
||||
|
Lamp Type |
WLED |
||||
|
Lamp Life Time |
30K(Min.) (Hours) |
||||
|
Interface Type |
Connector |
||||
|
Backlight Interface |
Brand: |
Model: |
Pin Pitch: |
Pins: |
Amount: |
|
ACES |
91208-01001 |
1.0 mm |
10 pins |
1 pcs |
|
|
Lamp Driver Board |
Embedded (LED Driver) |
||||
|
Lamp Driver Board |
12.0±5.0V |
||||
|
Lamp Driver Board |
0.4/0.5A (Typ./Max.) |
||||
|
Lamp Driver Board |
4.8/6W (Typ./Max.) |
||||
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time: 1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

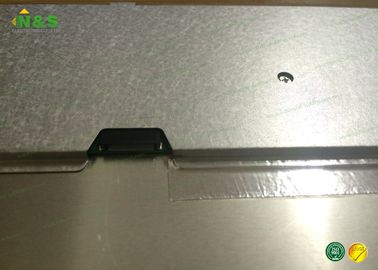

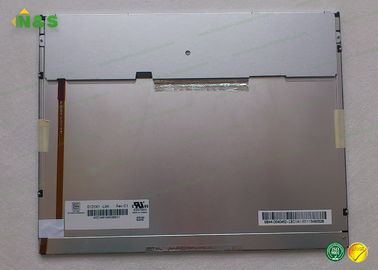

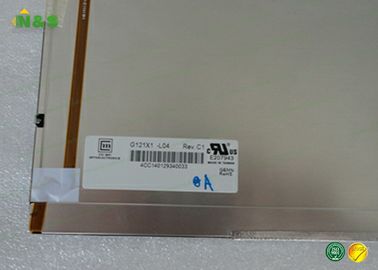

Products G121X1-L04 Image
