Product Details:
|
| Model Alias: | G104VN01 V.1 | Form Factor: | Flat Rectangle Display |
|---|---|---|---|
| Weight: | 390g (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| Holes & Brackets: | Face Mounting Holes (1-Φ3.4, 3-R1.7) On Left Right Bezel | Contrast Ratio: | 700 : 1 (Typ.) (Transmissive) |
| Response Time: | 20/10 (Typ.)(Tr/Td) | Total Power Consumption: | 5.4W (Typ.) |
| High Light: | auo display panel,auo lcd display |
||
10.4 Inch G104VN01 V1 AUO lcd display screen Bezel Area 214.8×162.4 mm ( H × V )
Our Advantages
Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33 (Max.)(5 points) |
Backlight System
Lamp Position :Edge light type (Bottom side)
Lamp Type : WLED
Lamp Amount : 8S2P
Lamp Shape : 2 strings
Lamp Life Time : 50K(Min.) (Hours)
Lamp Replaceable : Replaceable
Lamp Voltage : 25.5/29.2V (Typ./Max.)
Lamp Current : 80mA (Typ.)
Lamps Power Consumption : 4.1W (Typ.)
Interface Type : Connector
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 10.8/12.0/12.6V (Min./Typ./Max.)
Lamp Driver Board : 0.37A (Typ.)
Lamp Driver Board : 4.44W (Typ.)
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.

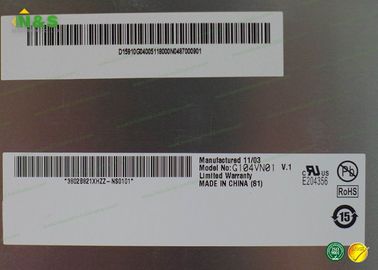

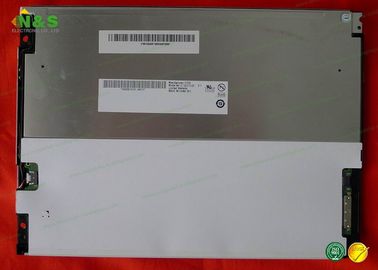

Product Picture for G104VN01 V1
