Product Details:
|
Contrast Ratio: | 700 : 1 (Typ.) (Transmissive) | Color Gamut: | 70% NTSC (CIE1931) |
---|---|---|---|
Response Time: | 10/15 (Typ.)(Tr/Td) | Outline Depth: | 3.6/5.0 (Typ./Max.) Mm |
Weight: | 178g (Typ.) | Aspect Ratio: | 16:10 (H:V) |
High Light: | lcd display panel,innolux lcd screen |

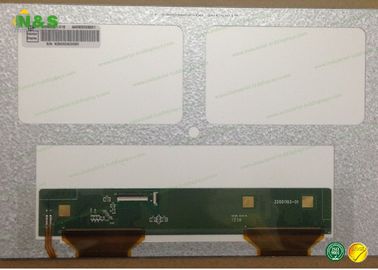

9 inch Hard coating Innolux LCD Panel EJ090NA-01B possess High Contrast Ratio as well as High Color Gamut
Product Specifications
SPECIFICATION:
Panel Size : | 9.0 inch |
Dot Resolution : | 1280(RGB)×800 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 167 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0505×0.1515 mm (H×V) |
Pixel Pitch : | 0.1515×0.1515 mm (H×V) |
Weight : | 178g (Typ.) |
Surface : | Hard coating |
Active Area : | 193.92×121.2 mm (H×V) |
Bezel Area : | 196.72×124.00 mm (H×V) |
Outline Dimension : | 206.76×135.06 mm (H×V) |
Outline Depth : | 3.6/5.0 (Typ./Max.) mm |
Operating Temperature : | -10 ~ 50 °C |
Storage Temperature : | -20 ~ 60 °C |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Our Services
Guarantee:

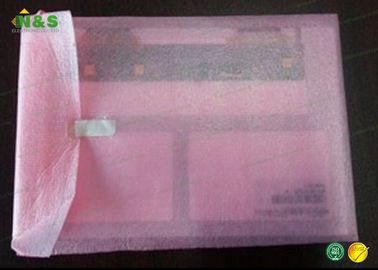

(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
CHIMEI INNOLUX EJ090NA-01B Optical Features
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
Display Color : | 262K/16.2M (6-bit / 6-bit + Dithering) |
Color Gamut : | 70% NTSC (CIE1931) |
Response Time : | 10/15 (Typ.)(Tr/Td) |
Viewing Angle : | 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) |
White color Chromaticity : | Wx:0.310; Wy:0.330 |
White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Products Details for INNOLUX EJ090NA-01B
