Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 193.92×121.2 Mm |
|---|---|---|---|
| Outline: | 206.76×135.06×4.8 Mm | Response Time: | 25 (Typ.)(Tr+Td) |
| Viewing Angle: | 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| Lamp Type: | 3S12P WLED | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 51 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||
TM090JDH01 9.0 inch Tianma LCD Displays TN / Normally White / Transmissive
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
TIANMA TM090JDH01 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM090JDH01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 9.0 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 193.92×121.2 mm |
| Outline : | 206.76×135.06×4.8 mm |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 70% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S12P WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 51 pins |
| Input Voltage : | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
TIANMA TM090JDH01 Backlight System
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 3S12P [8S6P: 8 Serial, 6 Parallel] |
| Lamp Shape : | Array |
| Lamp Life Time : | 20K(Min.) (Hours) |
| Lamp Voltage : | 9.6V (Typ.) |
| Lamp Current : | 240mA (Typ.) |
| Lamps Power Consumption : | 2.3/2.9W (Typ./Max.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP01 | Tianma | 5.5" | 720×1280 |

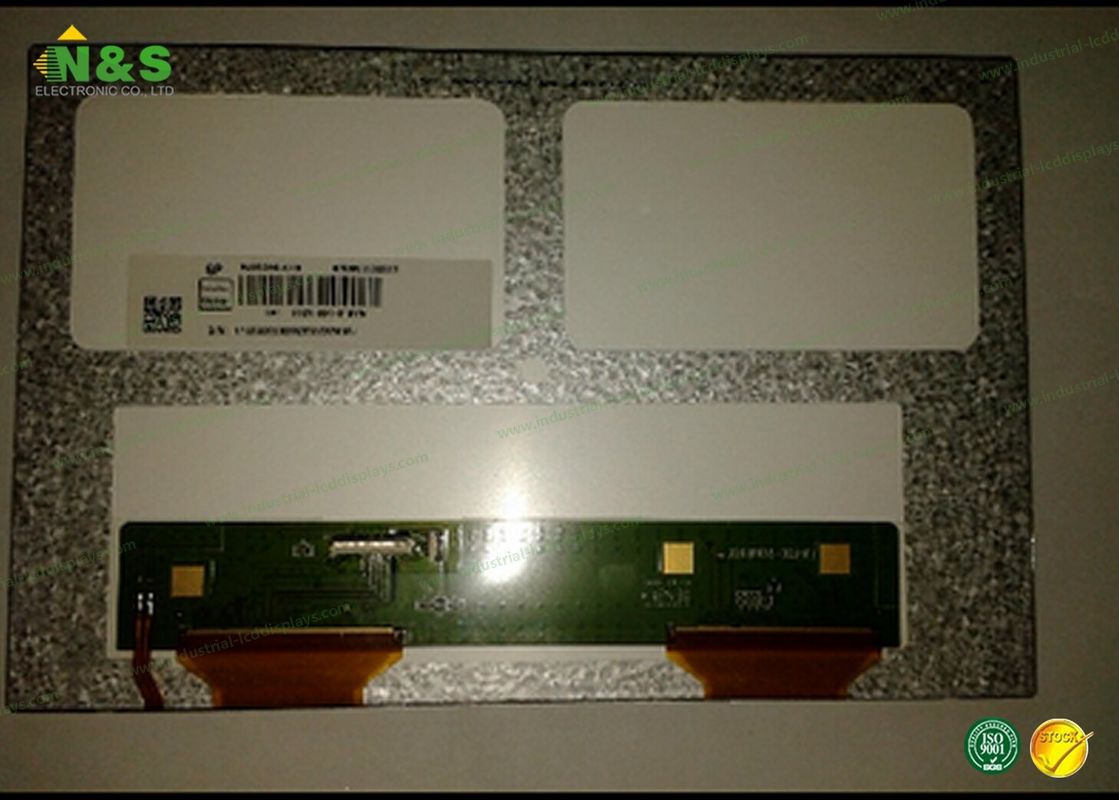

Details Pictures for Tianma LCD Displays TM090JDH01
