Product Details:
|
| Vibration Resistance: | 2.9G (28.4 M/s²) | Storage Temperature: | -40 ~ 90 °C |
|---|---|---|---|
| Pixel Density: | 111 PPI | Weight: | 610g (Typ.) |
| Holes & Brackets: | Face Mounting Holes (4-Φ4.2) On Left, Right Slugs | Viewing Direction: | 12 O'clock |
| High Light: | industrial touch screen display,industrial lcd panel |
||
12.1'' 1280*420 Resolution CPT CLAA121WB01AW LCD possess Aspect Ratio greater than 3:1 as well as Antiglare,Hard coating
Technical Parameters
| Dot Resolution : | 1280(RGB)×420 |
| Pixel Density : | 111 PPI |
| Aspect Ratio : | >3:1 (H:V) |
| Dot Pitch : | 0.076×0.228 mm (H×V) |
| Pixel Pitch : | 0.228×0.228 mm (H×V) |
| Weight : | 610g (Typ.) |
| Active Area : | 291.84×95.76 mm (H×V) |
| Bezel Area : | 294.8×98.8 mm (H×V) |
| Outline Dimension : | 312.9×117.6 mm (H×V) |
| Outline Depth : | 6.7/13.3 (Typ./Max.) mm |
| Operating Temperature : | -30 ~ 85 °C |
| Storage Temperature : | -40 ~ 90 °C |
| Vibration Resistance : | 2.9G (28.4 m/s²) |
CPT CLAA121WB01AW Optical Features
|
Display Mode : |
TN, Normally White, Transmissive |
|
Brightness : |
750 cd/m² (Typ.) |
|
Contrast Ratio : |
400 : 1 (Typ.) (Transmissive) |
|
Display Color : |
262K (6-bit) |
|
Response Time : |
20 (Typ.)(Tr+Td) |
|
Viewing Angle : |
65/65/65/60 (Typ.)(CR≥10) (L/R/U/D) |
|
Viewing Direction : |
12 o'clock |
|
White color Chromaticity : |
Wx:0.283; Wy:0.327 |
|
White Variation : |
1.25/1.49 (Max.)(5/13 points) |
Our Advantages
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Products Picture for CLAA121WB01AW

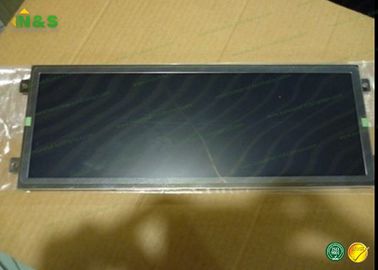

Front Picture

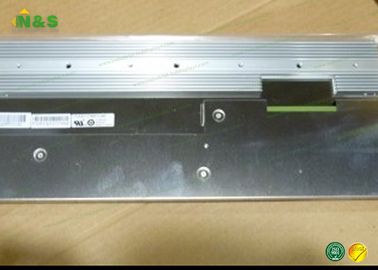

Backside Picture

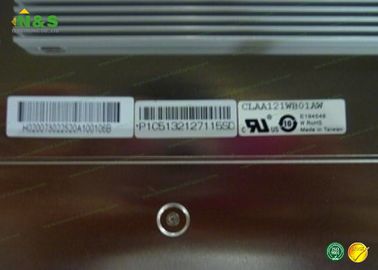

Tabs Picture
