Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 5.6 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Response Time: | 25 (Typ.)(Tr+Td) | Viewing Angle: | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type: | 2S7P WLED | Signal Interface: | TFT Specific Analog RGB , 26 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||
Tianma LCD Displays TM056KDH02 5.6 inch 113.28×84.708 mm Active Area 126.5×100 mm Outline
TIANMA TM056KDH02 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM056KDH02 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.6 inch |
| Resolution : | 320(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 113.28×84.708 mm |
| Outline : | 126.5×100 mm |
| Surface : | Antiglare |
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | Full color , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2S7P WLED |
| Signal Interface : | TFT Specific Analog RGB , 26 pins |
| Input Voltage : | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity,other specifications for the LCD Screen to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
TIANMA TM056KDH02 Mechanical Features
| Panel Size : | 5.6 inch |
| Dot Resolution : | 320(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 71 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.118×0.362 mm (H×V) |
| Pixel Pitch : | 0.354×0.362 mm (H×V) |
| Weight : | 123.0g (Typ.) |
| Surface : | Antiglare [Glare = Glossy Antiglare = Matte] |
| Active Area : | 113.28×84.708 mm (H×V) |
| Bezel Area : | 116.08×87.51 mm (H×V) |
| Outline Dimension : | 126.5×100 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP01 | Tianma | 5.5" | 720×1280 |
| TM046XYHP01 | Tianma | 4.7" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

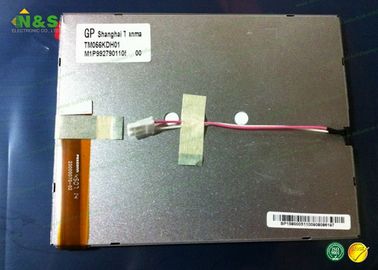

Details Pictures for Tianma LCD Displays TM056KDH02
