Product Details:
|
| Shape Style: | Flat (PCBA Flat, Depth 3.4~4.0mm) | Panel Model: | CLAA116WA03A 5 Compatible Model |
|---|---|---|---|
| Response Time: | 10 (Typ.)(Tr+Td) | Lamp Type: | WLED Embedded (LED Driver) |
| Input Voltage: | 3.3V (Typ.) | Surface: | Glare (Haze 0%) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

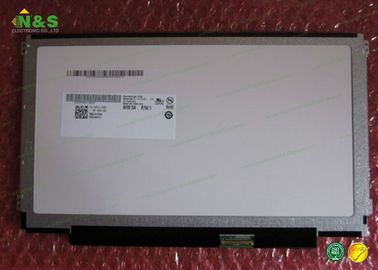

11.6 inch 5 Compatible model CPT CLAA116WA03A LCD with 1366*768 and Glare (Haze 0%) Surface
Product Description
| Panel Model : | CLAA116WA03A 5 Compatible model |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 11.6 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface : | Glare (Haze 0%) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 10 (Typ.)(Tr+Td) |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Corporate Main Products:
1. AUO LCD Panel
2. Innolux LCD Panel
3. Tianma LCD Displays
4. Samsung LCD Panel
5. Chimei LCD Screen
6. Innolux LCD Display
7. Hitachi LCD Panel
8. NEC LCD Screen Replacement
9. Sharp LCD Screen
10. TFT LCD Module
11. Industrial LCD Displays
Mechanical Features
|
Pixel Configuration : |
RGB Vertical Stripe |
|
Pixel Density : |
135 PPI |
|
Aspect Ratio : |
16:9 (H:V) |
|
Form Factor : |
Flat Rectangle Display |
|
Dot Pitch : |
0.0625×0.1875 mm (H×V) |
|
Pixel Pitch : |
0.1875×0.1875 mm (H×V) |
|
Weight : |
235g (Max.) |
|
Outline Dimension : |
278×167 mm (H×V) |
|
Outline Depth : |
3.6 (Max) mm |
|
Holes & Brackets : |
Face mounting holes (8 pcs) on left, right slugs |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
| CLAG045LH41 AXXA | CPT | 4.5" | 480×854 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Our Service:
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time: 1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
