Product Details:
|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 136.2×72 Mm | Outline: | 149×82.9 Mm |
| Response Time: | 10/15 (Typ.)(Tr/Td) | Viewing Angle: | 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type: | 3S10P WLED | Signal Interface: | TTL (1 Ch, 6-bit) , 60 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||

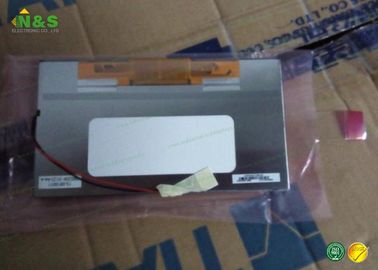

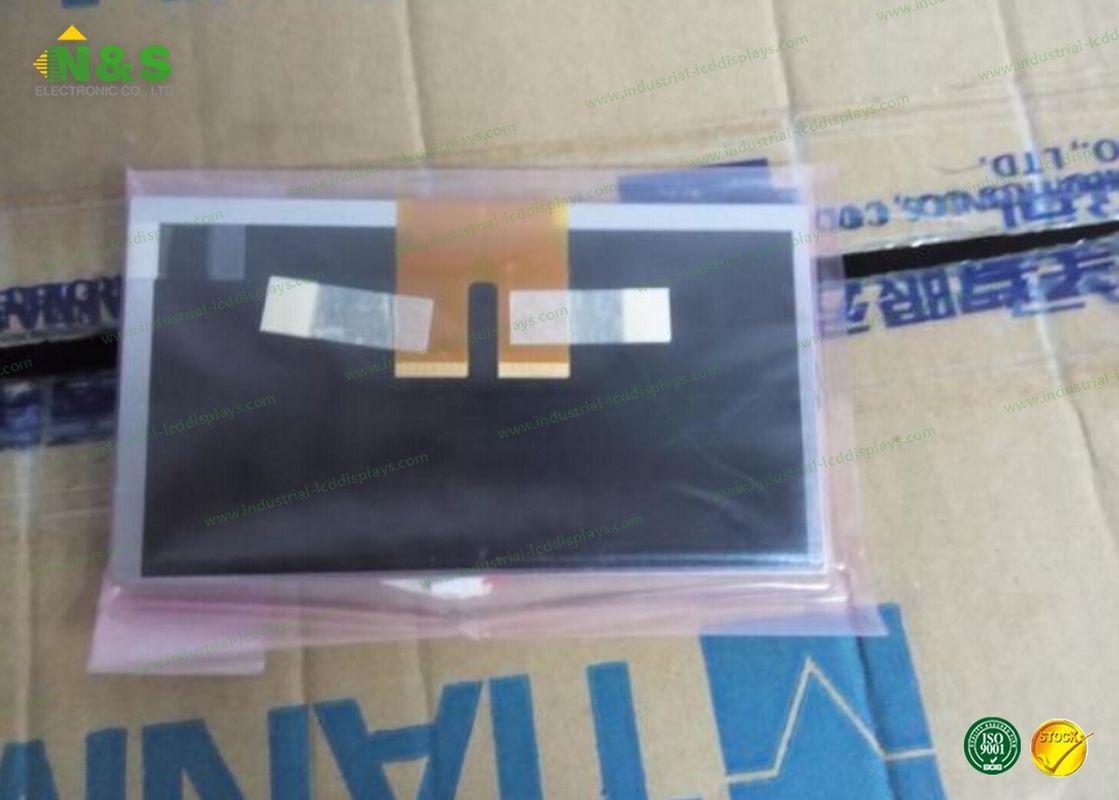

149×82.9 mm Outline PVI Industrial LCD Panel PM061WX1 6.1 inch
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
1. AUO LCD Screen
2. Samsung LCD Display
3. LG LCD Screen replacements
4. Sharp LCD panels &Chimei LCD Parts.
5. Innolux LCD Modules & BOE LCD Screen.
PVI PM061WX1 General Features
| Panel Brand : | PVI |
| Panel Model : | PM061WX1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.1 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 136.2×72 mm |
| Outline : | 149×82.9 mm |
| Surface : | Antiglare |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S10P WLED |
| Signal Interface : | TTL (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/3.3/9.5/17.0/-8.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
PVI PM061WX1 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
