Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 211.2×158.4 Mm |
|---|---|---|---|
| Outline: | 243×185.1×11.22 Mm | Display Colors: | 262K (6-bit) |
| Response Time: | 15/25 (Typ.)(Tr/Td) | Viewing Angle: | 75/75/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| Signal Interface: | LVDS (1 Ch, 6-bit) , 14 Pins | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

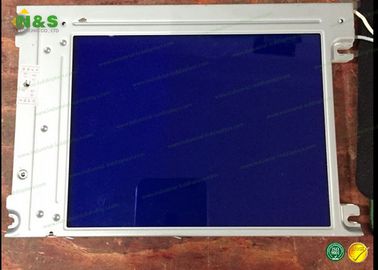

PVI Display PD104SLL 10.4 inch 211.2×158.4 mm Active Area 243×185.1×11.22 mm Outline
PVI PD104SLL General Features
| Panel Brand : | PVI |
| Panel Model : | PD104SLL |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×185.1×11.22 mm |
| Surface : | Antiglare |
| Brightness : | 1400 cd/m² (Min.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4S8P WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 14 pins |
| Input Voltage : | 3.3V (Typ.) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
PVI PD104SLL Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 1400 cd/m² (Min.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.320; Wy:0.340 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | Sunlight Readable |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
