Product Details:
|
| Active Area: | 129.6×97.44 Mm | Outline: | 175.4×126.9 Mm |
|---|---|---|---|
| Surface: | Antiglare | Panel Brand: | PVI |
| Panel Model: | PD064VT8 | Panel Type: | A-Si TFT-LCD , Panel |
| Lamp Type: | 3S8P×2CN WLED | Signal Interface: | TTL (1 Ch, 6-bit) , 31 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||

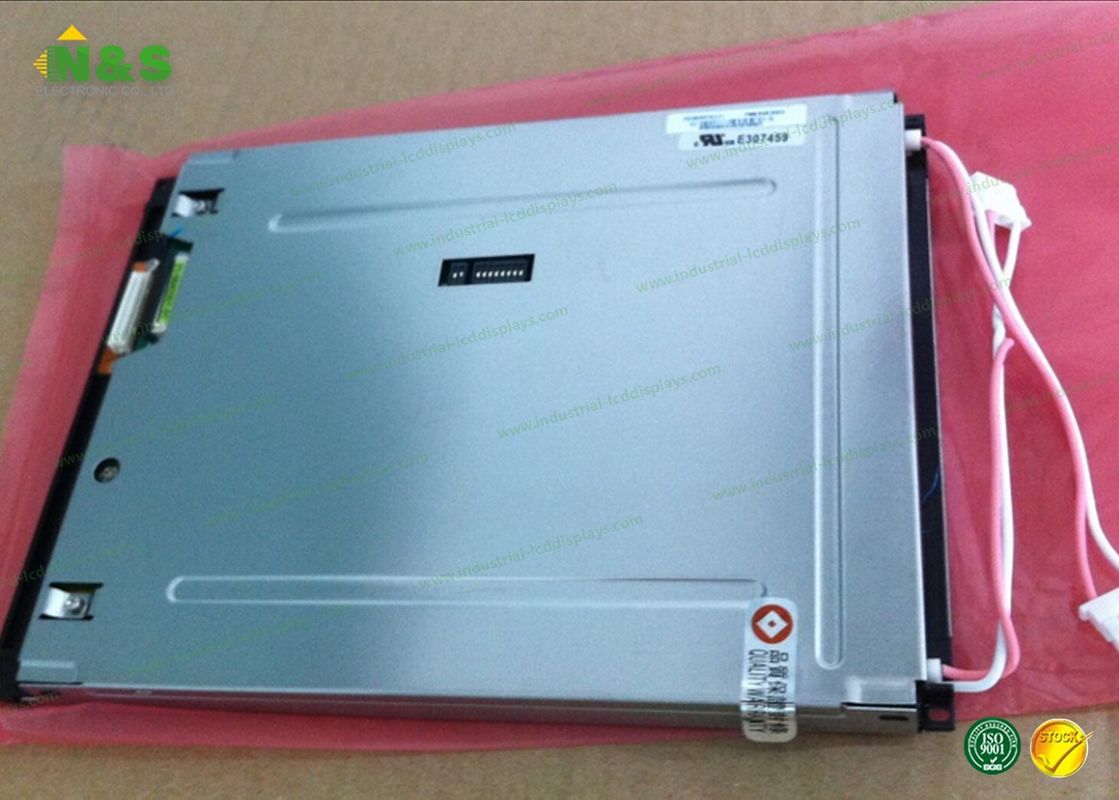

Replacement PVI LCD Display Panel PD064VT8 175.4×126.9 mm Outline
PVI PD064VT8 General Features
| Panel Brand : | PVI |
| Panel Model : | PD064VT8 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 129.6×97.44 mm |
| Outline : | 175.4×126.9 mm |
| Surface : | Antiglare |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S8P×2CN WLED |
| Signal Interface : | TTL (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 5.0V (Typ.)(VCC) |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
PVI PD064VT8 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
