Product Details:
|
| Surface: | Antiglare, Hard Coating (3H) | Display Colors: | 262K/16.2M (6-bit / 6-bit + Dithering) , CIE1931 50% |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Pixel Configuration: | RGB Vertical Stripe |
| Weight: | TBD | Outline Depth: | 3.5±0.3 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

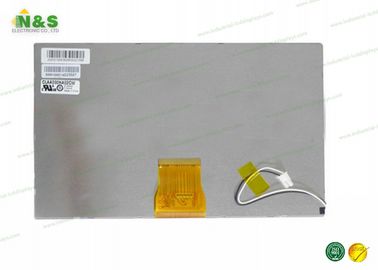

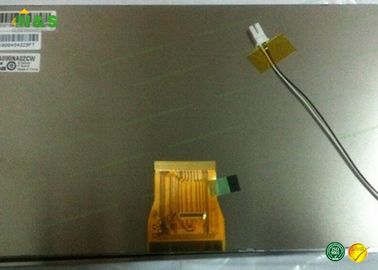

CPT CLAA090NA02CW Industrial LCD Displays , 9.0 inch color lcd screen 1024 × 600
CPT CLAA090NA02CW LCD Display Basic Info
| Panel Brand : | CPT | Brightness : | 300 cd/m² (Typ.) |
| Panel Model : | CLAA090NA02CW | Contrast Ratio : | 500:1 (Typ.) |
| Panel Type : | a-Si TFT-LCD , Panel | Display Colors : | 262K/16.2M (6-bit / 6-bit+Dithering) , CIE1931 50% |
| Panel Size : | 9.0 inch | Response Time : | 25 (Typ.)(Tr+Td) |
| Resolution : | 1024(RGB)×600 , WSVGA | Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Display Mode : | TN, Normally White,Transmissive | Frequency : | 60Hz |
| Active Area : | 196.608×114.15 mm | Lamp Type : | 4S6P WLED Without Driver |
| Outline : | 211.1×126.5 mm | Signal Interface : | LVDS (1 ch, 8-bit) , 60 pins |
| Surface : | Antiglare, Hard coating (3H) | Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
CPT CLAA090NA02CW Optical Features
Display Mode :TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + Dithering)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service:
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
