Product Details:
|
| Active Area: | 196.608×147.456 Mm | Outline: | 210.32×164.37×5.22 Mm |
|---|---|---|---|
| Surface: | Glare (Haze 0%), Hard Coating (2H), Antireflection | Brightness: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| Lamp Type: | 6S6P WLED | Signal Interface: | LVDS (1 Ch, 6-bit) , 30 Pins |
| High Light: | lg display panel,lg replacement screen |
||

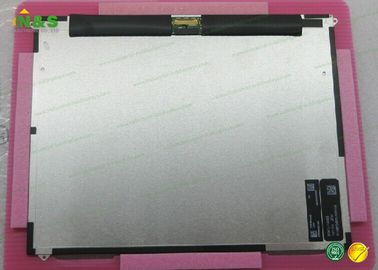

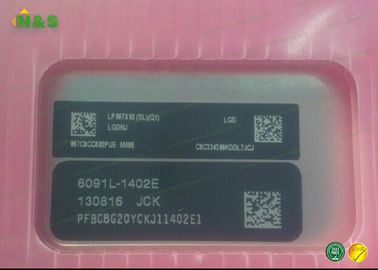

LP097X02- SLQ1 9.7 inch lcd replacement panel , tft color lcd display
LG Display LP097X02-SLQ1 General Features
| Panel Brand : | LG Display |
| Panel Model : | LP097X02-SLQ1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 9.7 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | H-IPS, Normally Black, Transmissive |
| Active Area : | 196.608×147.456 mm |
| Outline : | 210.32×164.37×5.22 mm |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S6P WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LG Display LP097X02-SLQ1 Optical Features
| Display Mode : | H-IPS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.309; Wy:0.317 |
| White Variation : | 1.40/1.60 (Typ./Max.)(17 points) |
