Product Details:
|
| Surface: | Antiglare, Hard Coating (3H) | Brightness: | 230 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 600:1 (Typ.) | Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 63% |
| Panel Brand: | HannStar | Panel Model: | HSD084ISN1-A00 |
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 8.4 Inch |
| High Light: | industrial touch screen display,industrial lcd screen |
||

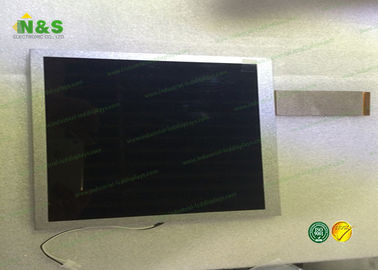

HannStar HSD084ISN1-A00 8.4 inch 170.4×127.8 mm Active Area 189.7×149.4 mm Outline
HannStar HSD084ISN1-A00 General Features
| Panel Brand : | HannStar |
| Panel Model : | HSD084ISN1-A00 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 189.7×149.4 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 230 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 63% |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S9P WLED |
| Signal Interface : | TTL (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
HannStar HSD084ISN1-A00 Mechanical Features
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 250g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.4×130.8 mm (H×V) |
| Outline Dimension : | 189.7×149.4 mm (H×V) |
| Outline Depth : | 5.0±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Company Strength:
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
Details Pictures for HannStar HSD084ISN1-A00
