Product Details:
|
| Outline: | 114.65×74.7 Mm | Brightness: | 350 Cd/m² (Typ.) |
|---|---|---|---|
| Display Colors: | 16.7M (8-bit) | Panel Model: | CLAA048LA0BCW |
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 4.8 Inch |
| Display Mode: | TN, Normally White, Transmissive | Response Time: | 20 (Max.)(Tr+Td) |
| High Light: | industrial touch screen display,industrial lcd panel |
||
CPT CLAA048LA0BCW TFT Color LCD Display 50 pins Signal Interface
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Lamp Position :Edge light type
Lamp Type : WLED
Interface Type : Included in panel signal interface
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 3/5/5.5V (Min./Typ./Max.)
Lamp Driver Board : 170/190/320mA (Min./Typ./Max.)
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
CPT CLAA048LA0BCW Signal Interface
| Signal Category : | TTL | |||||
|---|---|---|---|---|---|---|
| Signal Class : | TTL (1 ch, 8-bit) | |||||
| Input Voltage for Panel : | 3.3V (Typ.) | |||||
| Input Current for Panel : | 125/135mA (Typ./Max.) | |||||
| Voltage for Display Signals : | GND≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Type : | Connector | |||||
| Signal Interface : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | DRGB-50P1C8B-060A | |||
CPT CLAA048LA0BCW Electronics Feature
| Vertical Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Total Power Consumption : | 1.4W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAN080WQ65 XG | CPT | 8.0" | 800×1280 |
| CLAN070NQ06 | CPT | 7.0" | 1024×600 |
| CLAG050LD01 | CPT | 5.0" | 480×854 |
| CLAN060LB41 2XC | CPT | 6.0" | 540×960 |
| CLAD015GA01 CXA | CPT | 1.5" | 480×240 |
| CLAN101FP05 XG | CPT | 10.1" | 1920×1200 |
| CLAG101WH11 LXA | CPT | 10.1" | 1280×800 |
| CLAF055WB42 TXX | CPT | 5.5" | 720×1280 |
| CLAN089WA02 XN | CPT | 8.9" | 800×1280 |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| CLAN070NJ01 CW | CPT | 7.0" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

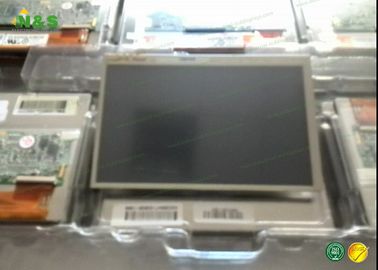

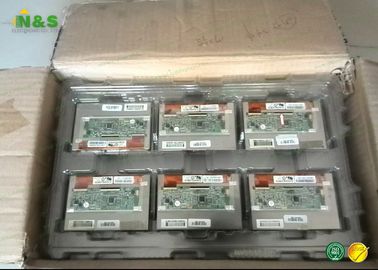

Details Pictures for CPT CLAA048LA0BCW
