Product Details:
|
Surface: | Antiglare, Hard Coating (3H) | Panel Size: | 6.2 Inch |
---|---|---|---|
Outline Depth: | 5.0±0.3 Mm | Outline Dimension: | 155.2×88.2 Mm (H×V) |
Landscape Or Portrait: | Landscape Type | Color Gamut: | 50% NTSC (CIE1931) |
High Light: | industrial touch screen display,industrial lcd panel |

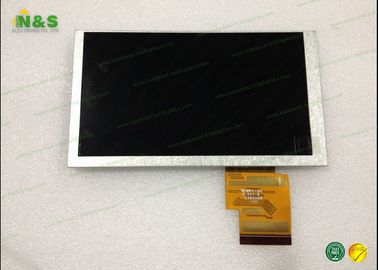

Antiglare HannStar industrial flat panel display HSD062IDW1 - A02
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
HannStar HSD062IDW1-A02 General Features
Resolution : | 800(RGB)×480 , WVGA |
Display Mode : | TN, Normally White, Transmissive |
---|---|
Active Area : | 137.52×77.232 mm |
Outline : | 155.2×88.2 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 600:1 (Typ.) |
Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% |
Response Time : | 2/6 (Typ.)(Tr/Td) |
Viewing Angle : | 75/75/70/70 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 3S7P WLED Without Driver |
Signal Interface : | TTL (1 ch, 6/8-bit) , 60 pins |
Our Service:
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
HannStar HSD062IDW1-A02 Mechanical Features:
Aspect Ratio : | 16:9 (H:V) |
---|---|
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0573×0.1609 mm (H×V) |
Pixel Pitch : | 0.1719×0.1609 mm (H×V) |
Weight : | 120g (Typ.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 137.52×77.232 mm (H×V) |
Bezel Area : | 140.7×80.4 mm (H×V) |
Outline Dimension : | 155.2×88.2 mm (H×V) |
Outline Depth : | 5.0±0.3 mm |
Landscape or Portrait : | Landscape type |
