|Panel Model:||AT056TN52 V.3||Panel Size:||5.6 Inch|
|Display Mode:||TN, Normally White, Transmissive||Active Area:||112.896×84.672 Mm|
|Brightness:||200 Cd/m² (Typ.)||Display Colors:||16.7M (8-bit)|
|Frequency:||60Hz||Signal Interface:||Parallel RGB (1 Ch, 8-bit) , 50 Pins|
lcd display panel,
innolux lcd screen
AT056TN52 V.3 5.6 inch Innolux LCD Panel , industrial lcd monitor Transmissive
INNOLUX AT056TN52 V.3 General Features
|Panel Brand :||INNOLUX|
|Panel Model :||AT056TN52 V.3|
|Panel Type :||a-Si TFT-LCD , Panel|
|Panel Size :||5.6 inch|
|Resolution :||640(RGB)×480 , VGA|
|Display Mode :||TN, Normally White, Transmissive|
|Active Area :||112.896×84.672 mm|
|Outline :||126.5×100×6 mm|
|Brightness :||200 cd/m² (Typ.)|
|Contrast Ratio :||500:1 (Typ.)|
|Display Colors :||16.7M (8-bit)|
|Response Time :||10/15 (Typ.)(Tr/Td)|
|Viewing Angle :||70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)|
|Lamp Type :||3S5P WLED|
|Signal Interface :||Parallel RGB (1 ch, 8-bit) , 50 pins|
|Input Voltage :||3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)|
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
INNOLUX AT056TN52 V.3 Mechanical Features
|Panel Size :||5.6 inch|
|Dot Resolution :||640(RGB)×480 (VGA)|
|Pixel Configuration :||RGB Vertical Stripe|
|Pixel Density :||143 PPI|
|Aspect Ratio :||4:3 (H:V)|
|Form Factor :||Flat Rectangle Display|
|Dot Pitch :||0.0588×0.1764 mm (H×V)|
|Pixel Pitch :||0.1764×0.1764 mm (H×V)|
|Weight :||127.5g (Typ.)|
|Active Area :||112.896×84.672 mm (H×V)|
|Bezel Area :||115.70×87.47 mm (H×V)|
|Outline Dimension :||126.5×100 mm (H×V)|
|Outline Depth :||5.7±0.3 mm|
|Landscape or Portrait :||Landscape type|
|Touch Panel :||Without|
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information: firstname.lastname@example.org

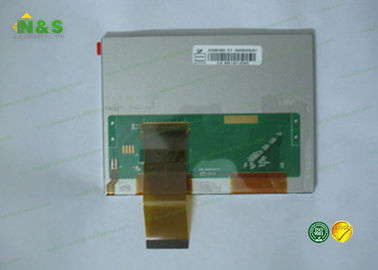

Details Pictures for Innolux LCD Panel AT056TN52 V.3
