Product Details:
|
| Surface: | Antiglare, Hard Coating (3H) | Brightness: | 230 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 400:1 (Typ.) | Outline: | 236×176.9×5.9 Mm |
| Display Colors: | 262K (6-bit) , CIE1931 50% | Response Time: | 10 (Typ.)(TTr+Td) |
| Active Area: | 211.2×158.4 Mm | ||
| High Light: | lcd display white screen,lcd panel screen |
||
General Features & Signal Interface :
<
TIANMA TS104SAALC01-00 General Features |
Panel Brand : | TIANMA |
| Panel Model : | TS104SAALC01-00 1 Compatible model | |
| Panel Type : | a-Si TFT-LCD , Panel | |
| Panel Size : | 10.4 inch | |
| Resolution : | 800(RGB)×600 , SVGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 236×176.9×5.9 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 230 cd/m² (Typ.) | |
| Contrast Ratio : | 400:1 (Typ.) | |
| Display Colors : | 262K (6-bit) , CIE1931 50% | |
| Response Time : | 10 (Typ.)(TTr+Td) | |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
TIANMA TS104SAALC01-00 Signal Interface |
Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) | |
| Signal Category : | LVDS | |
| Signal Class : | LVDS (1 ch, 6-bit) | |
| Input Voltage for Panel : | 3.3V (Typ.) | |
| Input Current for Panel : | 260/380mA (Typ./Max.) | |
| Interface Type : | Connector |
Accept batch order, Please contact us via mail or trademanager
Factory direct offers with professional factory support
1. We will double QC test before shipping
2. Focus on 100% customer satisfaction
Packaging Details :
Unit Type: piece
Package Weight: 0.500kg (1.10lb.)
Package Size: 22cm x 22cm x 5cm (8.66in x 8.66in x 1.97in)
More Information For N&S electronic Co.,LTD:
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory; Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4.long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6.the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.

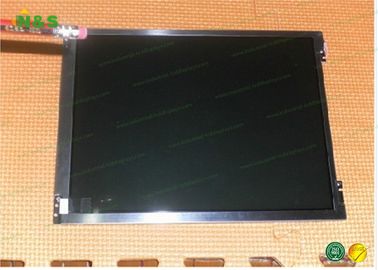

Pictures of TIANMA TS104SAALC01-00 LCD Display:
