Product Details:
|
| Panel Size: | 7.0 Inch | Panel Type: | A-Si TFT-LCD , Panel |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) (Transmissive) |
| Viewing Direction: | 4:30 O'clock | Aspect Ratio: | 4:3 (H:V) |
| High Light: | tft lcd display,innolux lcd screen |
||
7.0inch ZJ070NA-03C 500:1 High Brightness LCD Innolux LCD Panel
Company Strength:
Specifications:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0642×0.1790 mm (H×V) |
| Pixel Pitch : | 0.1926×0.1790 mm (H×V) |
| Weight : | TBD |
| Surface : | Hard coating (3H) |
| Active Area : | 154.08×85.92 mm (H×V) |
| Outline Dimension : | 165.75×100 mm (H×V) |
| Outline Depth : | 4.35±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Museum, Bank, Restaurant, Airport, Shopping mall,Exhibition ,Railway station, Police office, Control room, Studio room.
Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10 years.
2. We got the ISO9001 quality management system certification.
3. We have our own R&D team, and accept OEM order as per customer’s design.
4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6. All products win the certificate of CE,CCC,FCC and RoHS.
7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8. 3-years warranty is offered.
N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.

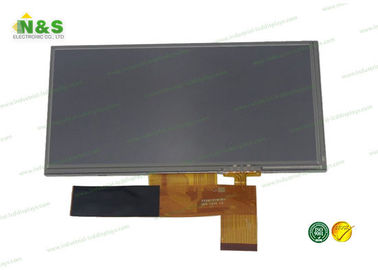

Details Pictures for the ZJ070NA-03C Screen Display Panel:
