Product Details:
|
| Size: | 10.1 Inch | Used For: | Industrial |
|---|---|---|---|
| Quality: | New Grade A Original | Lead Time: | Right Now |
| Highlight: | auo display panel,auo lcd screen |
||
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.0725×0.2088 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2175×0.2088 (H×V) | |
| Mechanical Size : | Active Area(mm) | 222.72(H) × 125.28(V) | Bezel Area(mm) | 226.43(H) × 128.1(V) |
| Outline Dim.(mm) | 235(H) × 143(V) | Depth(mm) | 5.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 340g (Max.) | Treatment | Antiglare, Hard coating (3H) |
2.AUO G101STN01.7 Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 7/9 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G101STN01.7 Backlight Details
| Signal Electrical : | Voltage Supply | 3.3/10/18/-8V (Typ.)(VDD/AVDD/VGH/VGL) | Current Supply | 10.4/13.4/0.3/0.3mA (Typ.)(IDD/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6/8-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm |
||||

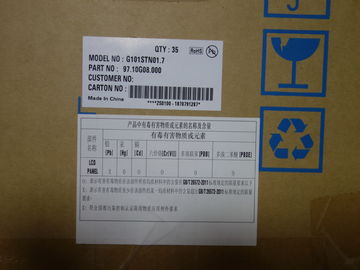

4.AUO G101STN01.7 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 35 pcs / box | 9.9 Kgs | 527×347×257 mm (L×W×H) |
5.Service
6.FAQ
