Product Details:
|
| Panel Model: | TD035STED4 | Panel Brand: | Toppoly |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | LTPS TFT-LCD |
| Active Area: | 53.28×71.04 Mm | Outline: | 64.3×87.1×4.8 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
TD035STED4 Toppoly LTPS TFT-LCD ,3.5 inch, 240×320 for Industrial Application
| Panel Model | TD035STED4 |
|---|---|
| Panel Brand | Toppoly |
| Descrition | LTPS TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
| Remarks | 3 in 1 FPC |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 114 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.074×0.222 mm (H×V) |
| Pixel Pitch | 0.222×0.222 mm (H×V) |
| Weight | 45g |
| Active Area | 53.28×71.04 mm (H×V) |
| Bezel Area | 55.30×73.04 mm (H×V) |
| Outline Dimension | 64.3×87.1 mm (H×V) |
| Outline Depth | 4.1/4.8 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistiv |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 115 cd/m² (Typ.) |
| Contrast Ratio | 15:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Color Gamut | 36% NTSC (CIE1931) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| Reflectance Ratio | 7/10% (Typ./Max.) |
| Sunlight Readable | Y |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 313mW (Typ.) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TD028TTEA3 | TPO | 2.8" | 240×320 |
| TD028TTEA2 | TPO | 2.8" | 240×320 |
| 990000267 | TPO | 3.2" | 320×480 |
| 990000024 | TPO | 2.8" | 240×320 |
| TC028STEA4 | TPO | 2.8" | 240×320 |
| TC028STEA3 | TPO | 2.8" | 240×320 |
| TC028STEA2 | TPO | 2.8" | 240×320 |
| TD028TTEB6 | TPO | 2.8" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information

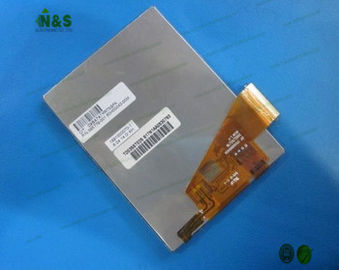

TD035STED4 pictures
