New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch

New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch
New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch

Large Image :  New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch

Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA070ME11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch

Description
Panel Model: AA070ME11 Panel Brand: Mitsubishi
Descrition: 800×480 Panel Type: A-Si TFT-LCD
A-Si TFT-LCD: 152.4×91.44 Mm Outline: 169.8×109.7×9.4 Mm
High Light:

industrial lcd screen

,

industrial lcd panel

New and original AA070ME11 Mitsubishi a-Si TFT-LCD ,7.0 inch, 800×480 for Industrial Application

AA070ME11 Basic Information

Panel Model AA070ME11
Panel Brand Mitsubishi
Descrition a-Si TFT-LCD ,7.0 inch, 800×480
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C
Remarks NCM



Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top



AA070ME11 Mechanical Features

Dot Resolution 800(RGB)×480 (WVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 133 PPI
Aspect Ratio 15:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0635×0.1905 mm (H×V)
Pixel Pitch 0.1905×0.1905 mm (H×V)
Weight 200g (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 152.4×91.44 mm (H×V)
Bezel Area 154.4×93.5 mm (H×V)
Outline Dimension 169.8×109.7 mm (H×V)
Outline Depth 8.9±0.5 mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen



AA070ME11 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 1500 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut 54% NTSC (CIE1931)
Response Time 4/12 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.43 (Max.)(5 points)
Sunlight Readable Y



Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

AA070ME11 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan Yes (180°)
Total Power Consumption 5.6W (Typ.)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AA142XE02 Mitsubishi 14.2" 1024×768
AA142XE01 Mitsubishi 14.2" 1024×768
AA142XD11 Mitsubishi 14.2" 1024×768
AA142XC11 Mitsubishi 14.2" 1024×768
AA142XC03 Mitsubishi 14.2" 1024×768
AA142XC02 Mitsubishi 14.2" 1024×768
AA142XC01 Mitsubishi 14.2" 1024×768
AA142XB11 Mitsubishi 14.2" 1024×768



We also have other industrial LCD panels, pls contact to us for the further information

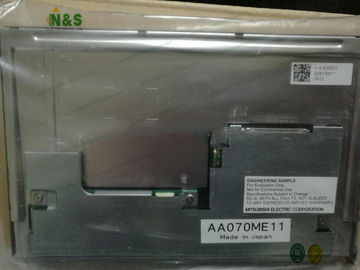

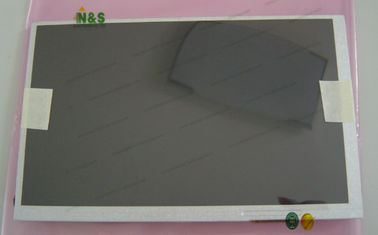

AA070ME11  pictures
