Product Details:
|
| Panel Model: | HR270WU1-200 | Panel Brand: | BOE |
|---|---|---|---|
| Descrition: | 1920×1080 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 597.888×336.312 Mm | Outline: | 630×368.2×15.7 Mm |
| High Light: | industrial touch screen display,industrial lcd panel |
||
HR270WU1-200 BOE a-Si TFT-LCD ,27.0 inch, 1920×1080 for 60Hz
Packing & Delivery for our LCD Screen Panel Replacements:
| Panel Model | HR270WU1-200 |
|---|---|
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,27.0 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
| Dot Resolution | 1920(RGB)×1080 (FHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 81 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1038×0.3114 mm (H×V) |
| Pixel Pitch | 0.3114×0.3114 mm (H×V) |
| Weight | 3.10Kgs (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 597.888×336.312 mm (H×V) |
| Bezel Area | 603.9×342.3 mm (H×V) |
| Outline Dimension | 630×368.2 mm (H×V) |
| Outline Depth | 10.3/15.7 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
| Display Mode | AFFS, Normally Black, Transmissive |
|---|---|
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 1.07B (10-bit) |
| Color Gamut | sRGB |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
| HR270QH3-100 | BOE | 27.0" | 2560×1440 |
| BF045WVQ-401 | BOE | 4.5" | 480×854 |
| BV055HDE-N40 | BOE | 5.5" | 720×1280 |
| TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
| AV080WVB-NW2 | BOE | 8.0" | 800×480 |
| BV050HDE-N47 | BOE | 5.0" | 720×1280 |
| BP096WX2-100 | BOE | 9.6" | 800×1280 |
We also have other industrial LCD panels, pls contact to us for the further information

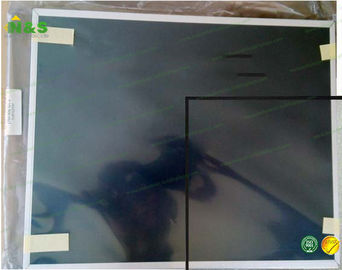

HR270WU1-200 Pictures
