Product Details:
|
| Panel Model: | AA104SJ05-DE1 | Panel Brand: | Mitsubishi |
|---|---|---|---|
| Panel Size: | 10.4 Inch | Resolution: | 800(RGB)×600 , SVGA |
| Display Area: | 211.2(W)×158.4(H) Mm | Outline Size: | 240.6(W)×190.8(H) Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
Mitsubishi AA104SJ05-DE1 General Features for Industrial Application
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Panel Model | AA104SJ05-DE1 |
|---|---|
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | without NCM |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
| Dot Resolution | 800(RGB)×600 (SVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 760g (Typ.) |
| Surface | Clear |
| Active Area | 211.2×158.4 mm (H×V) |
| Outline Dimension | 240.6×190.8 mm (H×V) |
| Outline Depth | 15.0 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (Projected Capacitive Touch) |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 480 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA090TB01-DA-01 | Mitsubishi | 9.0" | 1280×768 |
| AA121XN11-CE-01 | Mitsubishi | 12.1" | 1024×768 |
| AA121SA01 | Mitsubishi | 12.1" | 800×600 |
| AA057QB03 | Mitsubishi | 5.7" | 320×240 |
| AA084SL03 | Mitsubishi | 8.4" | 800×600 |
| AA141TH01 | Mitsubishi | 14.1" | 1280×800 |
| AA104XD02--T1 | Mitsubishi | 10.4" | 1024×768 |
| AA084XB01--T2 | Mitsubishi | 8.4" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information

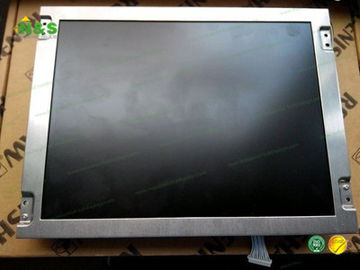

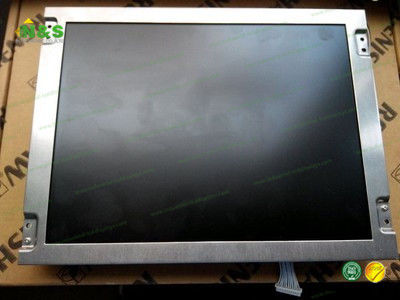

AA104SJ05-DE1pictures
