Product Details:
|
| Brand: | Mitsubishi | Diagonal Size: | 9.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 [WVGA] | Active Area: | 196.8(H)×118.08(V) Mm |
| Bezel Area: | 199.4(H)×120.7(V) Mm | ||
| High Light: | industrial touch screen display,industrial lcd panel |
||
Mitsubishi AA090ME01 General Features Industrial Application
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Panel Model | AA090ME01 |
|---|---|
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,9.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-55561D090J-LW-A-AAN |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
| Dot Resolution | 800(RGB)×480 (WVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 103 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.082×0.246 mm (H×V) |
| Pixel Pitch | 0.246×0.246 mm (H×V) |
| Weight | 320g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 196.8×118.08 mm (H×V) |
| Bezel Area | 199.4×120.7 mm (H×V) |
| Outline Dimension | 219×136.2 mm (H×V) |
| Outline Depth | 7.0/10.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA104XS10 | Mitsubishi | 10.4" | 1024×768 |
| AA104XS02 | Mitsubishi | 10.4" | 1024×768 |
| AA104VL02 | Mitsubishi | 10.4" | 640×480 |
| AA104SS02 | Mitsubishi | 10.4" | 800×600 |
| AA090WF01 | Mitsubishi | 9.0" | 800×480 |
| AA084XL03 | Mitsubishi | 8.4" | 1024×768 |
| AA175TA03 | Mitsubishi | 17.5" | 1280×768 |
| AA104SH12--T1 | Mitsubishi | 10.4" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information

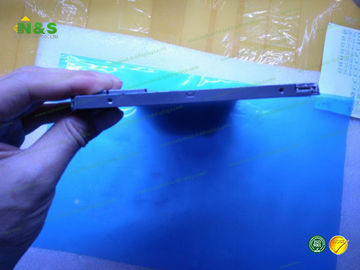

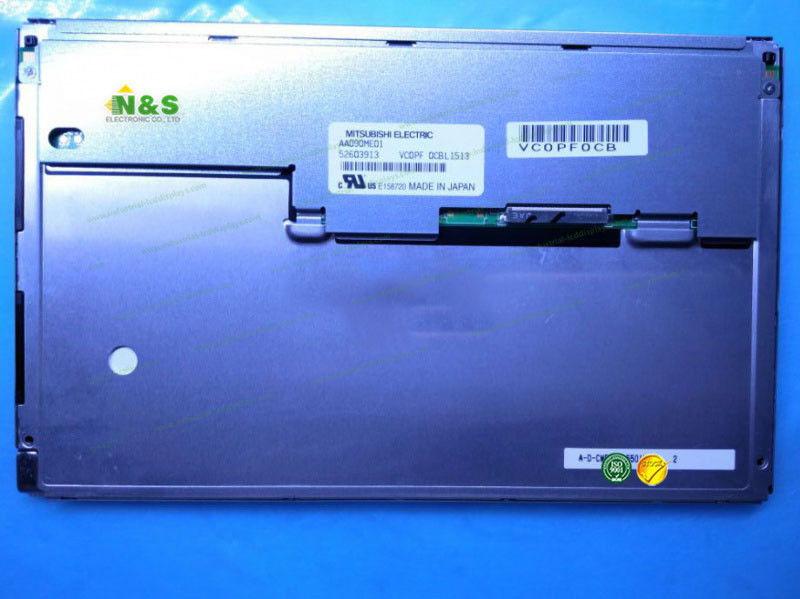

AA090ME01 pictures
