Product Details:
|
| Panel Model: | LTM084P363 | Panel Brand: | TOSHIBA |
|---|---|---|---|
| Descrition: | A-Si TFT-LCD | Mass: | 395g |
| Size: | 8.4 Inch | Usage: | Industrial |
| High Light: | industrial touch screen display,industrial lcd screen |
||

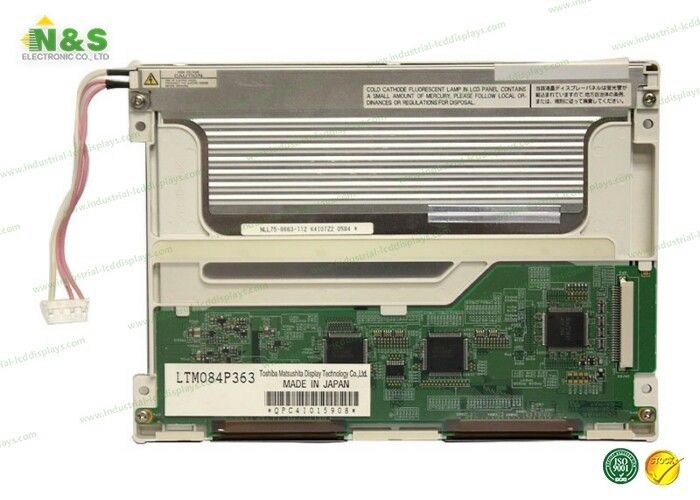

| Panel Model | LTM084P363 |
|---|---|
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.4×127.8 mm |
| Outline | 199.5×149.5 mm |
| Contrast Ratio | 250:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 30 pins |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Panel Model | LTM084P363 |
|---|---|
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0" | 240×427 |
| LTD154LZ1SG (Z) | TOSHIBA | 15.4" | 1920×1200 |
| LTD154EZ0HG | TOSHIBA | 15.4" | 1920×1200 |
| LTA140C06HF | TOSHIBA | 14.0" | 640×480 |
| LTM06C381 | TOSHIBA | 5.8" | 800×480 |
| LTM04C387S | TOSHIBA | 4.0" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
