Product Details:
|
| Panel Type: | LTPS TFT-LCD | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 1024×768 | Active Area: | 210.432×157.824 Mm |
| Outline: | 238.6×173.2 Mm | Display Colors: | 262K (6-bit) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

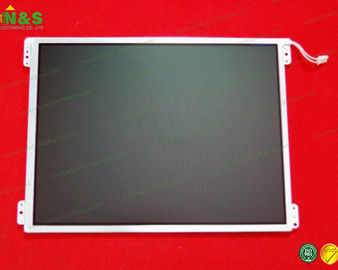

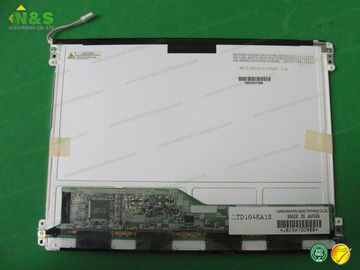

Normally White 10.4 inch LTD104KA1S TFT LCD Module Toshiba with 210.432×157.824 mm Outline 238.6×173.2 mm
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
LTD104KA1S Basic Information
| Panel Model | LTD104KA1S |
| Panel Brand | Toshiba Matsushita |
| Descrition | LTPS TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Digitizer easy insertion design, Mechanical Compatible with LTM10C321K/T Series. |
LTD104KA1S Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Weight | 195g (Typ.) |
| Active Area | 210.432×157.824 mm (H×V) |
| Bezel Area | 215.0×162.5 mm (H×V) |
| Outline Dimension | 238.6×173.2 mm (H×V) |
| Outline Depth | 6.8 (Max.) mm |
| Holes & Brackets | Face mounting holes on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTD104KA1S Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 170 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | 45/45/20/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Sunlight Readable | N |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ11 | CPT | 4.5" | 480×854 |
| CLAD027GJ01 00XD | CPT | 2.7" | 320×240 |
| 1.22 240RGB204 | BOE | 1.2" | 240×204 |
| CLAG040LM31 | CPT | 4.0" | 480×800 |
| BT040WVG-N60 | BOE | 4.0" | 480×800 |
| BS050HDG-N40-6C00 | BOE | 5.0" | 720×1280 |
| LH450WX3-SH01 | LG Display | 4.5" | 720×1280 |
| TT070WSB-NW1 | BOE | 7.0" | 1024×600 |
| TT070WSB-NW0 | BOE | 7.0" | 1024×600 |
| TT101WSB-NW0 | BOE | 10.1" | 1024×600 |
| C050SWY8-2 | IVO | 5.0" | 480×854 |
| C047SWY2-0 | IVO | 4.7" | 480×854 |
| LC490EQJ-SGE2 | LG Display | 49" | 3840×2160 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
