Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 8.9 Inch |
|---|---|---|---|
| Resolution: | 1024×600 | Display Colors: | 262K (6-bit) |
| Outline: | 213.36×129.55×5.45 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

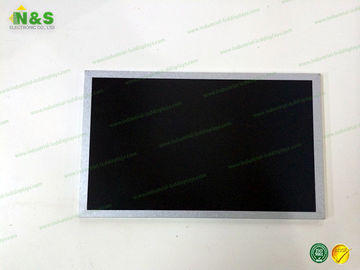

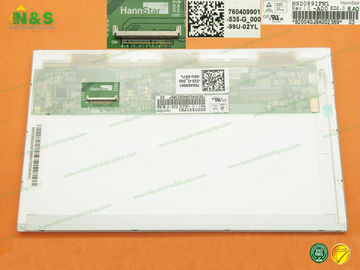

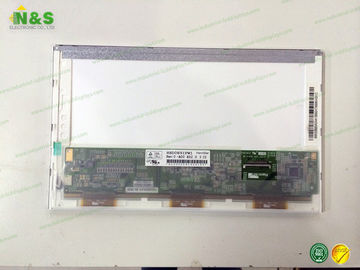

Normally White HSD089IFW1-A00 TFT LCD Module HannStar 8.9 inch resolution 1024×600 Contrast Ratio 500:1 (Typ.)
HSD089IFW1-A00 Basic Information
| Panel Model | HSD089IFW1-A00 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
HSD089IFW1-A00 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1890 mm (H×V) |
| Pixel Pitch | 0.1905×0.1890 mm (H×V) |
| Weight | 200/215g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 195.072×113.4 mm (H×V) |
| Bezel Area | 198.27×116.6 mm (H×V) |
| Outline Dimension | 213.36×129.55 mm (H×V) |
| Outline Depth | 5.15/5.45 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD089IFW1-A00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
