Product Details:
|
| Panel Type: | A-Si TFT-LCD | Resolution: | 800×600 |
|---|---|---|---|
| Active Area: | 170.4×127.8 Mm | Outline: | 203×142.5×8.3 Mm |
| Contrast Ratio: | 600:1 (Typ.) | ||
| Highlight: | auo display panel,auo lcd screen |
||
Normally White G084SN05 V7 8.4 inch TFT LCD Module 800×600 Active Area 170.4×127.8 mm new and original
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
G084SN05 V7 Basic Information
| Panel Model | G084SN05 V7 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | G084SN05 V.7 |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
| Remarks | Mass Production: May 2008; EOL: Jan. 2012; Last Time Buy: Oct. 2011 |
G084SN05 V7 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 260±10g |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 174.15×131.2 mm (H×V) |
| Outline Dimension | 203×142.5 mm (H×V) |
| Outline Depth | 8.3 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
G084SN05 V7 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM030CFH11 | Tianma | 3.0" | 320×240 |
| M320QAN01.1 CELL | AUO | 32.0" | 3840×2160 |
| M270HVN02.0 CELL | AUO | 27.0" | 1920×1080 |
| M270HTN01.1 CELL | AUO | 27.0" | 1920×1080 |
| B116XAN03.0 CELL | AUO | 11.6" | 1366×768 |
| M215HTN01.3 CELL | AUO | 21.5" | 1920×1080 |
| M190PW01 V8 CELL | AUO | 19.0" | 1440×900 |
| H380VW01 V0 | AUO | 3.8" | 480×800 |
| A030DTN01.1 | AUO | 3.0" | 320×240 |
| H466AAN01.0 | AUO | 4.7" | 540×960 |
| H402VVN01.3 | AUO | 4.0" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

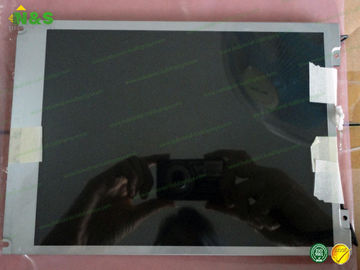

G084SN05 V7 Picture
