Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800×600 | Contrast Ratio: | 1000:1 (Typ.) |
| Display Colors: | 262K (6-bit) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

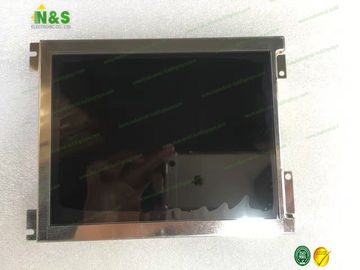

Resolution 800×600 TCG121SVLPBANN-AN00 12.1 inch Surface Antiglare Lamp Type 3 strings WLED Without Driver
TCG121SVLPBANN-AN00 Basic Information
| Panel Model | TCG121SVLPBANN-AN00 |
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
TCG121SVLPBANN-AN00 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 645g |
| Surface | Antiglare |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 278.3×207.5 mm (H×V) |
| Outline Depth | 9.5±0.5 mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4, 3-R1.7) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
TCG121SVLPBANN-AN00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 4/22 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.295; Wy:0.315 |
| Sunlight Readable | N |
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
