Product Details:
|
| Panel Size: | 8.5 Inch | Resolution: | 800×480 |
|---|---|---|---|
| Surface: | Glare (Haze 0%) | Contrast Ratio: | 500:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

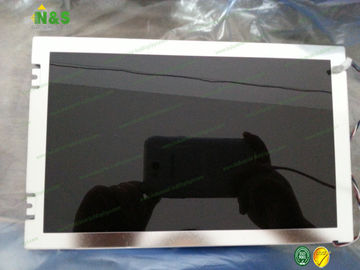

8.5 inch TCG085WVLCB-G00 resolution 800×480 TFT LCD Module Kyocera Normally White with 184.8×110.88 mm
Our advantages in the LCD Screen market:
1. Better price
2. Fast delivery
3. Top quality
4. First class after - sales service
5. No memory effect
6. Sourcing lines & Distributors for the EOL LCD.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
TCG085WVLCB-G00 Basic Information
| Panel Model | TCG085WVLCB-G00 |
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,8.5 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
TCG085WVLCB-G00 Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 109 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.077×0.231 mm (H×V) |
| Pixel Pitch | 0.231×0.231 mm (H×V) |
| Weight | 305g (Typ.) |
| Surface | Glare (Haze 0%) |
| Active Area | 184.8×110.88 mm (H×V) |
| Bezel Area | 187.4×113.5 mm (H×V) |
| Outline Dimension | 210×134 mm (H×V) |
| Outline Depth | 8.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
TCG085WVLCB-G00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 49% NTSC (CIE1931) |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/60/45 (Typ.)(CR≥5) (L/R/U/D) |
| White color Chromaticity | Wx:0.320; Wy:0.340 |
| White Variation | 1.43 (Max.)(5 points) |
| Sunlight Readable | N |
