Product Details:
|
| Panel Model: | NT156FHM-N31 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Brightness: | 220 Cd/m² (Typ.) |
| Contrast Ratio: | 600:1 (Typ.) (TM) | Surface: | Glare (Haze 0%), Hard Coating |
| High Light: | industrial touch screen display,industrial lcd panel |
||

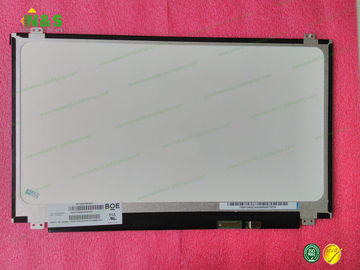

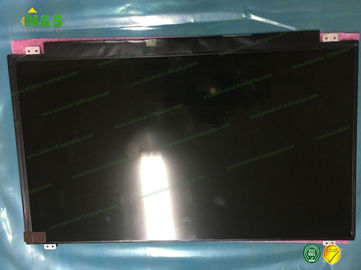

15.6 inch NT156FHM-N31 TFT LCD Module BOE high resolution 1920×1080 Brightness 220 cd/m² (Typ.) new and original
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV185WHB-N10 | BOE | 18.5" | 1366×768 |
| HV430FHB-N4A | BOE | 43" | 1920×1080 |
| BV055HDE-T46 | BOE | 5.5" | 720×1280 |
| BV050HDE-T45-3Q00 | BOE | 5.0" | 720×1280 |
| BS035DVE-N40-6Q00 | BOE | 3.5" | 640×960 |
| BL060WHME301 | BOE | 6.0" | 1440×2560 |
| MV215FHB-N10 | BOE | 21.5" | 1920×1080 |
| AT070WSB-NW1 | BOE | 7.0" | 1024×600 |
| HV320WX2-176 | BOE | 31.5" | 1366×768 |
| HV320WHB-N81 | BOE | 31.5" | 1366×768 |
| HV490QUB-B00 | BOE | 49" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
AA070ME11-DA-01 Information
| Panel Brand | BOE | Panel Model | NT156FHM-N31 |
| Panel Size | 15.6 inch | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 , FHD | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm | Bezel Opening | - |
| Outline Size | 359.5(W)×223.8(H) ×3.2(D) mm | Surface | Glare (Haze 0%), Hard coating |
| Brightness | 220 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | - | Response Time | 12 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% (CIE1931) | Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz | Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) | Application | |
| Signal Interface | eDP (2 Lanes) , 30 pins , Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | ||
