Product Details:
|
| Panel Model: | HB125WX1-100 | Panel Brand: | BOE |
|---|---|---|---|
| Outline: | 300.4×179.5×3.6 Mm | Surface: | Antiglare |
| High Light: | industrial touch screen display,industrial lcd panel |
||

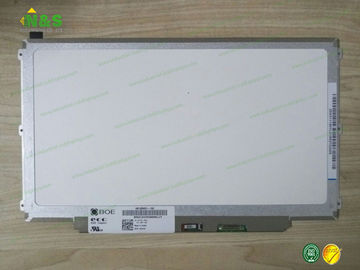

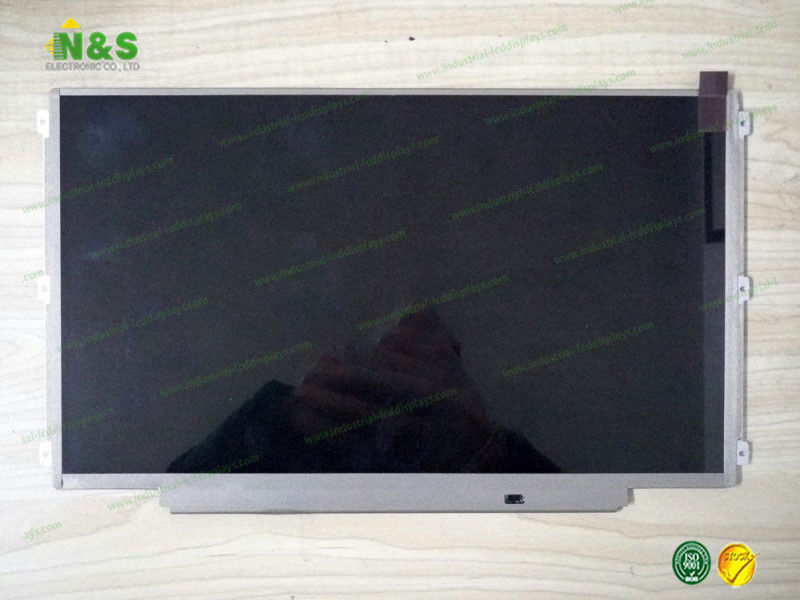

HB125WX1-100 BOE 12.5 Inch resolution 1366×768 tft Lcd Panel Active Area 276.615×155.52 mm
HB125WX1-100 Basic Information
| Panel Model | HB125WX1-100 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,12.5 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HB125WX1-100 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 125 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch | 0.2025×0.2025 mm (H×V) |
| Weight | 280g (Max.) |
| Surface | Antiglare |
| Active Area | 276.615×155.52 mm (H×V) |
| Bezel Area | 280.215×158.92 mm (H×V) |
| Outline Dimension | 300.4×179.5 mm (H×V) |
| Outline Depth | 3.6 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (6 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
HB125WX1-100 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/20 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
