Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 18.1 Inch |
|---|---|---|---|
| Resolution: | 1280×1024 | Contrast Ratio: | 550:1 (Typ.) |
| Frequency: | 60Hz | ||
| High Light: | industrial touch screen display,industrial lcd panel |
||

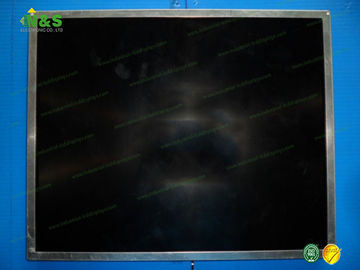

ITSX88E IDTech 18.1 inch 1280×1024 Outline 389×317.2 mm Lamp Type 6 pcs CCFL Embedded (Inverter)
ITSX88E Basic Information
| Panel Model | ITSX88E |
| Panel Brand | IDTech |
| Descrition | a-Si TFT-LCD ,18.1 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | R181E1-L01 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
ITSX88E Mechanical Features
| Dot Resolution | 1280(LCR)×1024 (SXGA) |
| Pixel Configuration | LCR Vertical Stripe |
| Pixel Density | 90 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0935×0.2805 mm (H×V) |
| Pixel Pitch | 0.2805×0.2805 mm (H×V) |
| Weight | 2.90Kgs (Typ.) |
| Active Area | 359.04×287.232 mm (H×V) |
| Bezel Area | 367.0×295.2 mm (H×V) |
| Outline Dimension | 389×317.2 mm (H×V) |
| Outline Depth | 35.0 (Max.) mm |
| Holes & Brackets | Side mounting holes (10-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V236BJ1-P03 | Innolux | 23.6" | 1366×768 |
| PH035NA-01B | Innolux | 3.5" | 320×480 |
| PH040NA-01B | Innolux | 4.0" | 480×800 |
| PH045NA-01A | Innolux | 4.5" | 480×854 |
| PH045NA-01B | Innolux | 4.5" | 480×854 |
| PB050IA-01A | Innolux | 5.0" | 540×960 |
| ZE065NA-01B | Innolux | 6.5" | 800×480 |
| ZE050NA-08D | Innolux | 5.0" | 640×480 |
| N070ICN-PB1 | Innolux | 7.0" | 800×1280 |
| N156BGE-P41 | Innolux | 15.6" | 1366×768 |
| V500HJ1-PE8 | Innolux | 50" | 1920×1080 |
| V400HJ6-PE1 | Innolux | 40" | 1920×1080 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
ITSX88E Optical Features
| Display Mode | DD-IPS, Normally Black, Transmissive |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 550 : 1 (Typ.) (Transmissive) |
| Display Color | Grayscale (8-bit) |
| Response Time | 40 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.299; Wy:0.305 |
| Sunlight Readable | N |
