Product Details:
|
| Resolution: | 1024×768 | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Panel Size: | 12.1 Inch | Contrast Ratio: | 700:1 (Typ.) |
| Frequency: | 60Hz | ||
| High Light: | industrial touch screen display,industrial lcd screen |
||

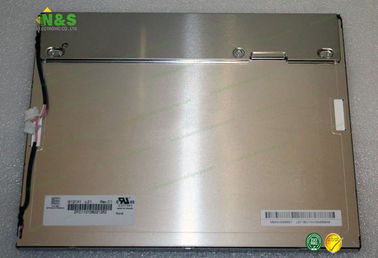

Normally White 12.1 inch G121X1-L01 CMO Outline 260.5×204×12.7 mm Lamp Type 2 pcs CCFL Without Driver
G121X1-L01 Basic Information
| Panel Model | G121X1-L01 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 70 °C |
| Storage Temperature | -40 ~ 80 °C |
G121X1-L01 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 660g (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 260.5×204 mm (H×V) |
| Outline Depth | 8.42/12.7 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
G121X1-L01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.303; Wy:0.319 |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CD040JN13 | Innolux | 4.0" | 480×800 |
| HE070IA-04M | Innolux | 7.0" | 800×1280 |
| M195FGE-P03 | Innolux | 19.5" | 1600×900 |
| M195FGE-P02 | Innolux | 19.5" | 1600×900 |
| HB050NA-07A | Innolux | 5.0" | 640×960 |
| F04013-04Z | Innolux | 4.0" | 480×800 |
| F05005-04U | Innolux | 5.0" | 480×854 |
| F05005-03U | Innolux | 5.0" | 480×854 |
| F05005-02U | Innolux | 5.0" | 480×854 |
| F05005-01U | Innolux | 5.0" | 480×854 |
| PP050IC-01B | Innolux | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
G121X1-L01 Backlight System
| Lamp Position | Edge light type (Top and Bottom) |
| Lamp Type | CCFL |
| Lamp Amount | 2 pcs |
| Lamp Shape | Straight |
| Lamp Life Time | 50K(Min.) (Hours) |
| Lamp Voltage | 470±47V |
| Lamp Current | 2.0/8.0/8.5mA (Min./Typ./Max.) |
| Lamp Operating Frequency | 45/80KHz (Min./Max.) |
| Lamp Startup Voltage | 1010/1200V (Max.)(Ta=+25/0℃) |
| Lamps Power Consumption | 7.52W (Typ.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
