Product Details:
|
Resolution: | 1280×800 | Panel Size: | 10.1 Inch |
---|---|---|---|
Outline: | 229.46×149.1×7.16 Mm | Surface: | Hard Coating |
Contrast Ratio: | 800:1 (Typ.) | Frequency: | 60Hz |
High Light: | lcd display panel,innolux lcd screen |

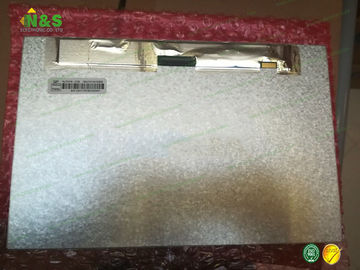

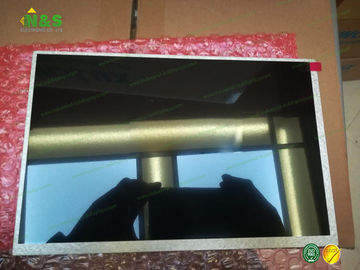

New and original NJ101IA-01S 10.1 inch 1280×800 Active Area 216.96×135.6 mm Surface Hard coating
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packing & Delivery for our LCD Screen Panel Replacements:
NJ101IA-01S Basic Information
Panel Model | NJ101IA-01S |
Panel Brand | INNOLUX |
Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -20 ~ 70 °C |
Storage Temperature | -30 ~ 80 °C |
NJ101IA-01S Mechanical Features
Dot Resolution | 1280(RGB)×800 (WXGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 149 PPI |
Aspect Ratio | 16:10 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.0565×0.1695 mm (H×V) |
Pixel Pitch | 0.1695×0.1695 mm (H×V) |
Weight | TBD |
Surface | Hard coating |
Active Area | 216.96×135.6 mm (H×V) |
Outline Dimension | 229.46×149.1 mm (H×V) |
Outline Depth | 4.8/7.16 (Typ./Max.) mm |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
NJ101IA-01S Optical Features
Display Mode | IPS, Normally Black, Transmissive |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 50% NTSC (CIE1931) |
Response Time | 10/15 (Typ.)(Tr/Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.310; Wy:0.330 |
White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
V650HP1-PS6 Rev.C1 | Innolux | 65" | 1920×1080 |
M220ZGE-P02 | Innolux | 22.0" | 1680×1050 |
V420HJ2-P01 | Innolux | 42" | 1920×1080 |
F05501-01Z | Innolux | 5.5" | 720×1280 |
EE101IA-01D | Innolux | 10.1" | 1280×800 |
HE070IA-02E | Innolux | 7.0" | 1280×800 |
HE101NA-02C | Innolux | 10.1" | 1280×800 |
ZE090NA-01B | Innolux | 9.0" | 1280×800 |
HE080NA-04I | Innolux | 8.0" | 1024×768 |
HE070NA-13C | Innolux | 7.0" | 1024×600 |
HE070NA-13B | Innolux | 7.0" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
