Product Details:
|
Panel Brand: | INNOLUX | Panel Model: | ZJ070NA-01P |
---|---|---|---|
Panel Type: | A-Si TFT-LCD | Resolution: | 1024×600 |
Frequency: | 60Hz | ||
High Light: | tft lcd display,lcd display panel |

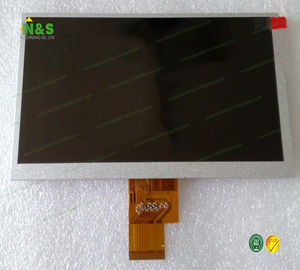

Normally White ZJ070NA-01P INNOLUX 7.0 inch 1024×600 resolution Outline 165.75×105.39×5.1 mm Frequency 60Hz
ZJ070NA-01P Mechanical Features
Dot Resolution | 1024(RGB)×600 (WSVGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 169 PPI |
Aspect Ratio | 17:10 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.050×0.150 mm (H×V) |
Pixel Pitch | 0.150×0.150 mm (H×V) |
Weight | 156g |
Surface | Glare (Haze 0%) |
Active Area | 153.6×90 mm (H×V) |
Bezel Area | 156.4×92.8 mm (H×V) |
Outline Dimension | 165.75×105.39 mm (H×V) |
Outline Depth | 4.80±0.3 mm |
Holes & Brackets | Without |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
ZJ070NA-01P Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Gamut | 70% NTSC (CIE1931) |
Response Time | 10/15 (Typ.)(Tr/Td) |
Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | 6 o'clock |
White color Chromaticity | Wx:0.310; Wy:0.330 |
White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
Sunlight Readable | N |
ZJ070NA-01P Electronics Feature
Vertical Frequency | 60Hz |
Reverse Scan | Yes (U/D, L/R) |
Total Power Consumption | 3.914W (Typ.) |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
ZJ070NA-01P Basic Information
Panel Model | ZJ070NA-01P |
Panel Brand | CHIMEI INNOLUX |
Descrition | a-Si TFT-LCD ,7.0 inch, 1024×600 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -30 ~ 80 °C |
Storage Temperature | -30 ~ 80 °C |
