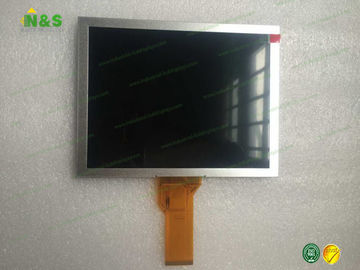

Surface Anti Glare Innolux LCD Panel 8.0 Inch Resolution 800×600 , Flat Rectangle Display

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

Surface Anti Glare Innolux LCD Panel 8.0 Inch Resolution 800×600 , Flat Rectangle Display

Surface Anti Glare Innolux LCD Panel 8.0 Inch Resolution 800×600 , Flat Rectangle Display
Surface Anti Glare Innolux LCD Panel 8.0 Inch Resolution 800×600 , Flat Rectangle Display

Large Image :  Surface Anti Glare Innolux LCD Panel 8.0 Inch Resolution 800×600 , Flat Rectangle Display

Product Details:
Place of Origin: Korea
Brand Name: INNOLUX
Certification: ISO9001
Model Number: EJ080NA-05B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

Surface Anti Glare Innolux LCD Panel 8.0 Inch Resolution 800×600 , Flat Rectangle Display

Description
Panel Size: 8.0 Inch Resolution: 800×600
Panel Type: A-Si TFT-LCD Active Area: 162×121.5 Mm
Outline: 183×141×5.9 Mm Contrast Ratio: 500:1 (Typ.)
High Light:

tft lcd display

,

lcd display panel

EJ080NA-05B INNOLUX 8.0 inch resolution 800×600 Normally White Industrial Lcd Screen Panel Surface Antiglare

EJ080NA-05B Basic Information

Panel Model EJ080NA-05B
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,8.0 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Remarks 2 in 1 FPC, DE/SYNC mode selectable


EJ080NA-05B Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 125 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0675×0.2025 mm (H×V)
Pixel Pitch 0.2025×0.2025 mm (H×V)
Weight 241g (Typ.)
Surface Antiglare
Active Area 162×121.5 mm (H×V)
Bezel Area 164.8×124.3 mm (H×V)
Outline Dimension 183×141 mm (H×V)
Outline Depth 5.6±0.3 mm
Landscape or Portrait Landscape type
Touch Panel Without


EJ080NA-05B Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Dithering)
Color Gamut 50% NTSC (CIE1931)
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.310; Wy:0.330
White Variation 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable N


Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!



FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
P079ZCZ-3Z2 Innolux 7.9" 768×1024
M315DJJ-Q01 Innolux 31.5" 3840×2160
V320BJ6-Q01 Innolux 31.5" 1366×768
V650DK2-QS2 Innolux 65" 3840×2160
F055A15-6T1 Innolux 5.5" 720×1280
F050A19-601 Innolux 5.5" 720×1280
