Product Details:
|
| Panel Model: | AT080TN64 | Panel Brand: | INNOLUX |
|---|---|---|---|
| Outline: | 192.8×116.9 Mm | Active Area: | 176.64×99.36 Mm |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | tft lcd display,innolux lcd screen |
||

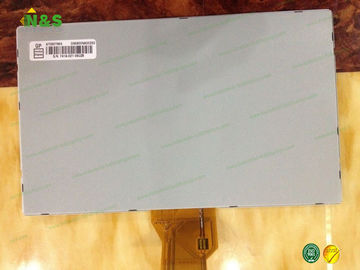

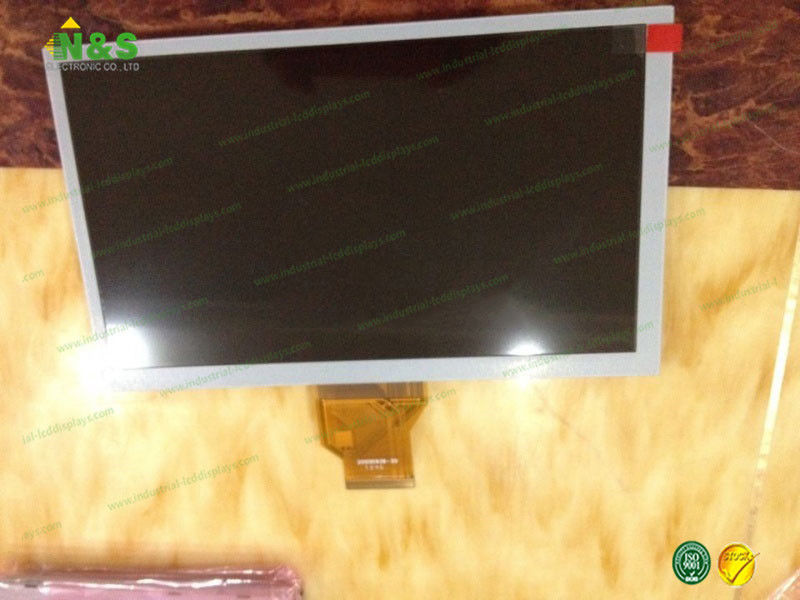

Normally White AT080TN64 8.0 inch 800×480 Industrial LCD Displays Frequency 60Hz Surface Antiglare
AT080TN64 Basic Information
| Panel Model | AT080TN64 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,8.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
AT080TN64 Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 116 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0736×0.2070 mm (H×V) |
| Pixel Pitch | 0.2208×0.2070 mm (H×V) |
| Weight | 251g (Typ.) |
| Surface | Antiglare |
| Active Area | 176.64×99.36 mm (H×V) |
| Bezel Area | 180.1×103.4 mm (H×V) |
| Outline Dimension | 192.8×116.9 mm (H×V) |
| Outline Depth | 6.3±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AT080TN64 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P070ACZ-3Z1 | Innolux | 7.0" | 600×1024 |
| F03511-02U | Innolux | 3.5" | 320×480 |
| F05007-01Z | Innolux | 5.0" | 720×1280 |
| EE101IA-01C | Innolux | 10.1" | 1280×800 |
| EB070NA-09A | Innolux | 7.0" | 800×480 |
| V500DK2-PS1 | Innolux | 50" | 3840×2160 |
| 86A04310-00 | Innolux | 4.3" | 480×272 |
| HE070IA-04R | Innolux | 7.0" | 800×1280 |
| HE070IA-04E | Innolux | 7.0" | 800×1280 |
| HE080IA-01E | Innolux | 8.0" | 1024×768 |
| M200FGE-P02 | Innolux | 20.0" | 1600×900 |
