Normally Black N101ICG-L21 Rev.C1 Industrial LCD Displays 10.1 inch, 1280×800 Active Area 216.96×135.6 mm

Normally Black N101ICG-L21 Rev.C1 Industrial LCD Displays 10.1 inch, 1280×800 Active Area 216.96×135.6 mm
Normally Black N101ICG-L21 Rev.C1 Industrial LCD Displays 10.1 inch, 1280×800 Active Area 216.96×135.6 mm

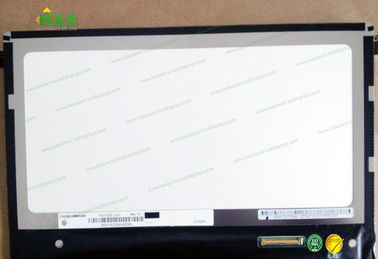

Large Image :  Normally Black N101ICG-L21 Rev.C1 Industrial LCD Displays 10.1 inch, 1280×800 Active Area 216.96×135.6 mm

Product Details:
Place of Origin: Japan
Brand Name: CMO
Certification: ISO9001
Model Number: N101ICG-L21 Rev.C1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD
Packaging Details: Standard packing
Delivery Time: 1-2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....
Supply Ability: 1000

Normally Black N101ICG-L21 Rev.C1 Industrial LCD Displays 10.1 inch, 1280×800 Active Area 216.96×135.6 mm

Description
Panel Model: N101ICG-L21 Rev.C1 Panel Brand: CMO
Size: 10.1 Inch Resolution: 1280×800
Contrast Ratio: 800:1 (Typ.) Frequency: 60Hz
High Light:

industrial lcd screen

,

industrial lcd panel

Normally Black N101ICG-L21 Rev.C1 Industrial LCD Displays 10.1 inch, 1280×800 Active Area 216.96×135.6 mm



N101ICG-L21 Rev.C1 Basic Information

Panel Model N101ICG-L21 Rev.C1
Panel Brand CMO
Descrition a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Remarks For Asus TF300/TF500


N101ICG-L21 Rev.C1 Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 149 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0565×0.1695 mm (H×V)
Pixel Pitch 0.1695×0.1695 mm (H×V)
Weight 120/135g (Typ./Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 216.96×135.6 mm (H×V)
Bezel Area 219.31×138.25 mm (H×V)
Outline Dimension 227.42×147.69 mm (H×V)
Outline Depth 2.16/4.85 (Typ./Max.) mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without


N101ICG-L21 Rev.C1 Optical Features

Display Mode AAS, Normally Black, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 14/11 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.308; Wy:0.324
White Variation 1.11/1.25 (Typ./Max.)(9 points)
Sunlight Readable N
