Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 800×600 |
|---|---|---|---|
| Surface: | Antiglare | Contrast Ratio: | 600:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

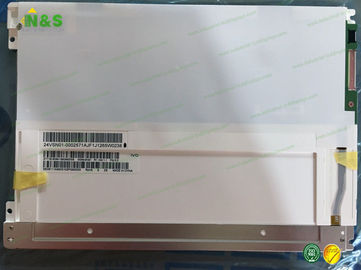

Normally White 8.4 inch M084GNS1 R1 IVO 800×600 Outline 203×142.5 mm Surface Antiglare new and original in stock
M084GNS1 R1 Basic Information
| Panel Model | M084GNS1 R1 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M084GNS1 R1 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 200g (Typ.) |
| Surface | Antiglare |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.4×131.2 mm (H×V) |
| Outline Dimension | 203×142.5 mm (H×V) |
| Outline Depth | 5.7 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) on left, right bezel |
| Touch Panel | Without |
M084GNS1 R1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Our Company Strength in LCD Screen Sourcing:
1.ISO9001 certificated, Factory Direct Supplied
2.Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C039SWP6-0 | IVO | 4.0" | 480×800 |
| C054SWZ4-1 | IVO | 5.4" | 540×960 |
| C054SWN4-0 | IVO | 5.4" | 540×960 |
| C045SWY2-2 | IVO | 4.5" | 480×854 |
| C023SN21-0 | IVO | 2.3" | 240×320 |
| C039SWP4-0 | IVO | 4.0" | 480×800 |
| C039SWN1-1 | IVO | 4.0" | 320×480 |
| F101NWN7-0 | IVO | 10.1" | 1920×1200 |
| C043GW32 R1 | IVO | 4.3" | 480×272 |
| C045SWY1-4 | IVO | 4.5" | 480×854 |
| C050SWY7-1 | IVO | 5.0" | 480×854 |
