Product Details:
|
| Panel Mode: | M150GNN2 R3 | Panel Brand: | IVO |
|---|---|---|---|
| Luminance: | 420 Cd/m² (Typ.) | Type: | A-Si TFT-LCD, LCM |
| Size: | 15" | Resolution: | 1024×768 |
| High Light: | industrial touch screen display,industrial lcd screen |
||

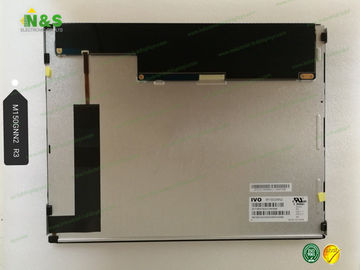

Normally White 15.0 inch Industrial LCD Displays IVO M150GNN2 R3 TFT LCD MODULE Frame Rate 60Hz
M150GNN2 R3 Details
Panel Brand IVO
Panel Model M150GNN2 R3
Panel Size 15.0 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768 , XGA
Pixel Format RGB Vertical Stripe
Display Area 304.128(W)×228.096(H) mm
Bezel Opening 307.4(W)×231.3(H) mm
Outline Size 326.5(W)×253.5(H) mm
Surface Antiglare, Hard coating (3H)
Brightness 420 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 16 (Typ.)(Tr+Td)
Display Colors 16.2M 70% (CIE1931)
Lamp Type 10S3P WLED , 30K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 1.20Kgs (Max.)
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -20 ~ 70 °C
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Panel Model | Brand | Size | Resolution |
| C050SWY7-0 | IVO | 5.0" | 480×854 |
| C022SN91-0 | IVO | 2.2" | 176×220 |
| F054SWN1-1 | IVO | 5.4" | 540×960 |
| C060SWZ1-1 | IVO | 6.0" | 540×960 |
| C050SWZ3-0 | IVO | 5.0" | 540×960 |
| P190MWW4 R2 | IVO | 19.0" | 1440×900 |
| P190MWW4 R1 | IVO | 19.0" | 1440×900 |
| C039SWP4 | IVO | 4.0" | 480×800 |
| C028SN21-0 | IVO | 2.8" | 240×320 |
| P270MWN1 R0 | IVO | 27.0" | 1920×1080 |
| C050SWY2 | IVO | 4.9" | 480×854 |
