Product Details:
|
Panel Size: | 10.1 Inch | Resolution: | 1024×600 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD | Active Area: | 222.72×125.28 Mm |
Contrast Ratio: | 400:1 (Typ.) | Frequency: | 60Hz |
High Light: | industrial touch screen display,industrial lcd screen |

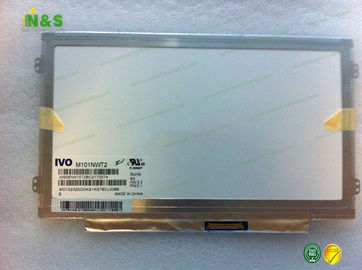

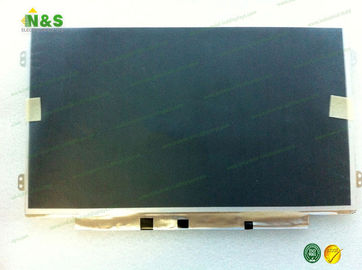

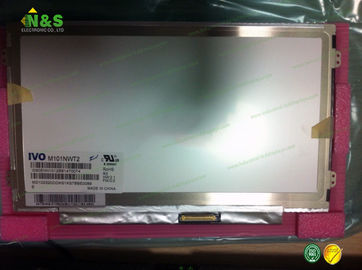

Normally White New and original M101NWT2 R3 TFT LCD MODULE 10.1 inch, 1024×600 Surface Antiglare
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
C035SWN1-1 | IVO | 3.5" | 320×480 |
C035SWN1-0 | IVO | 3.5" | 320×480 |
C101NWTG | IVO | 10.1" | 1024×600 |
C046SWN1-2 | IVO | 4.6" | 480×854 |
C062SWP1 R1 | IVO | 6.2" | 800×480 |
C035SWN1-4 | IVO | 3.5" | 320×480 |
C090NWP1 R0 | IVO | 9.0" | 800×480 |
C054SWN1-1 | IVO | 5.4" | 540×960 |
C045SWY1-1 | IVO | 4.5" | 480×854 |
C039SWN3-0 | IVO | 3.9" | 272×480 |
C039SWN1-0 | IVO | 4.0" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
M101NWT2 R3 Basic Information
Panel Model | M101NWT2 R3 |
Panel Brand | IVO |
Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
Panel Type | a-Si TFT-LCD |
Model Alias | M101NWT2-R3 |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
M101NWT2 R3 Mechanical Features
Dot Resolution | 1024(RGB)×600 (WSVGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 117 PPI |
Aspect Ratio | 16:9 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.0725×0.2088 mm (H×V) |
Pixel Pitch | 0.2175×0.2088 mm (H×V) |
Weight | 175g (Max.) |
Surface | Antiglare |
Active Area | 222.72×125.28 mm (H×V) |
Outline Dimension | 243×146.5 mm (H×V) |
Outline Depth | 3.8 (Max.) mm |
Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
M101NWT2 R3 Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 200 cd/m² (Typ.) |
Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
Display Color | 262K (6-bit) |
Color Gamut | 45% NTSC (CIE1931) |
Response Time | 8 (Typ.)(Tr+Td) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | 6 o'clock |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.25/1.60 (Max.)(5/13 points) |
Sunlight Readable | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
