Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1280×800 | Outline: | 229.46×149.1×4.56 Mm |
| Active Area: | 216.96×135.6 Mm | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

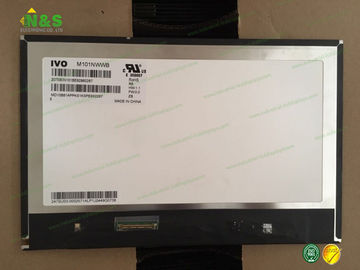

Normally Black M101NWWB R8 10.1 inch, 1280×800 new and original Outline 229.46×149.1×4.56 mm
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
M101NWWB R8 Basic Information
| Panel Model | M101NWWB R8 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M101NWWB R8 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 160g (Max.) |
| Surface | Glare (Haze 0%), Hard coating |
| Active Area | 216.96×135.6 mm (H×V) |
| Outline Dimension | 229.46×149.1 mm (H×V) |
| Outline Depth | 2.5/4.56 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101NWWB R8 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33/1.43 (Typ./Max.)(13 points) |
| Sunlight Readable | N |
We also have other industrial LCD panels, pls contact to us for the further information:
| Panel Model | Brand | Size | Resolution |
| C062SWP1 R1 | IVO | 6.2" | 800×480 |
| C035SWN1-4 | IVO | 3.5" | 320×480 |
| C090NWP1 R0 | IVO | 9.0" | 800×480 |
| C054SWN1-1 | IVO | 5.4" | 540×960 |
| C045SWY1-1 | IVO | 4.5" | 480×854 |
| C039SWN3-0 | IVO | 3.9" | 272×480 |
| C039SWN1-0 | IVO | 4.0" | 320×480 |
| C090SWT3-0 | IVO | 9.0" | 1024×600 |
| G046SWN1 R1 | IVO | 4.6" | 480×854 |
| C052SWP1-3 | IVO | 5.2" | 480×800 |
| C054SWN1-0 | IVO | 5.4" | 540×960 |
| C078SNX1-0 | IVO | 7.9" | 768×1024 |
