Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Resolution: | 1024×768 | Outline: | 326.5×253.5 Mm |
| Contrast Ratio: | 800:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd screen |
||

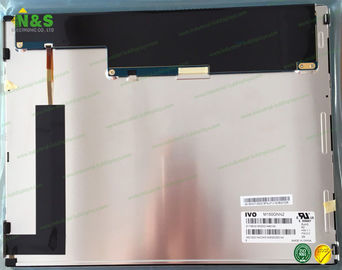

Normally White 15.0 inch M150GNN2 R2 1024×768 TFT Display LCD Module Surface Antiglare, Hard coating (3H)
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C035SWN1-1 | IVO | 3.5" | 320×480 |
| C035SWN1-0 | IVO | 3.5" | 320×480 |
| C101NWTG | IVO | 10.1" | 1024×600 |
| C046SWN1-2 | IVO | 4.6" | 480×854 |
| C062SWP1 R1 | IVO | 6.2" | 800×480 |
| C035SWN1-4 | IVO | 3.5" | 320×480 |
| C090NWP1 R0 | IVO | 9.0" | 800×480 |
| C054SWN1-1 | IVO | 5.4" | 540×960 |
| C045SWY1-1 | IVO | 4.5" | 480×854 |
| C039SWN3-0 | IVO | 3.9" | 272×480 |
| C039SWN1-0 | IVO | 4.0" | 320×480 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
M150GNN2 R2 Basic Information
| Panel Model | M150GNN2 R2 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | M150GNN2-R2 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M150GNN2 R2 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 930/960g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M150GNN2 R2 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 420 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 70% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.305; Wy:0.325 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
